1
Engine displacement
0
2
Year
1994
3
Trim
TRAIL BLAZER - W947221
4
Parts Catalog

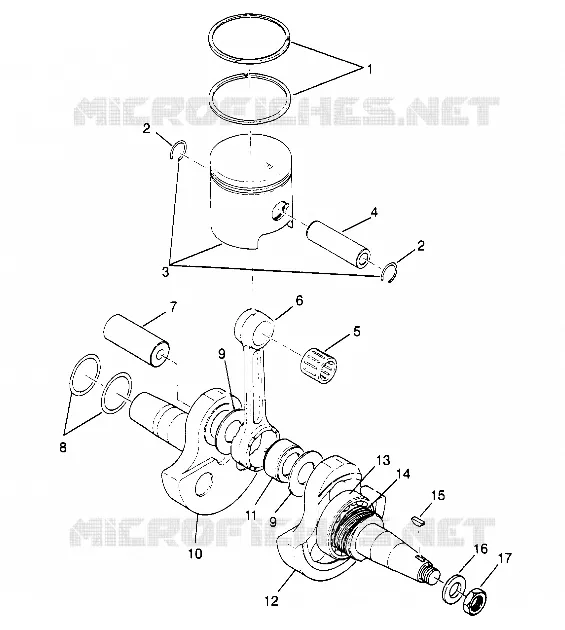

CRANKSHAFT AND PISTON TRAIL BLAZER W947221 (4926832683C006)
5
Parts Diagram
Parts Catalog
CRANKCASE AND CYLINDER TRAIL BLAZER W947221 (4926832683C005)
by
MAGNETO ASSEMBLY TRAIL BLAZER W947221 (4926832683C007)
CRANKSHAFT AND PISTON TRAIL BLAZER W947221 (4926832683C006)
-
-
1
1
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
7
8
8
8
8
9
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
1
1
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
-
RING PISTON(O/S 1.0MM) (.040 Oversize)
3083974
$54,59 Unit Price incl. VAT
-
RING .020 O/S (.020 Over)
3083717
$40,94 Unit Price incl. VAT
1
RING .010 O/S (0.10 Oversize)
3083678
Not Available
1
RING PISTON
3083546
Not Available
2
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
3
PISTON .010 O/S (.010 Over) (Incl. 16)
3083943
Not Available
3
PISTON .020 O/S (.020 Over) (Incl. 16)
3083944
Not Available
3
PISTON * (Standard) (Incl. 16)
3083942
Not Available
3
PISTON (1.0 MM O/S) (1.00mm/.040# O/S)(Incl. 15)
3083972
Not Available
4
PIN PISTON
3083838
2207579
$356,99 Unit Price incl. VAT
5
BEARING SMALL END
3083626
Not Available
6
ROD CONNECTING
3082790
Not Available
7
CRANK PIN PTO
3082796
Not Available
8
SPACER #1
3083629
Not Available
8
SPACER #3
3083630
Not Available
9
SPACER
3083804
$36,74 Unit Price incl. VAT
10
CRANKSHAFT #2
3083802
Not Available
11
BEARING LGE.END
3083803
Not Available
12
CRANKSHAFT ASM.
3084582
Not Available
13
BEARING BALL
3084580
Not Available
14
GEAR CRANKSHAFT
3083745
Not Available
15
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
16
WASHER Substituted by 3086767
3083904
Not Available
17
LOCKNUT
3083905
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
