ENGINE, CARBURETOR, LOWER FOR SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ FROM 2011

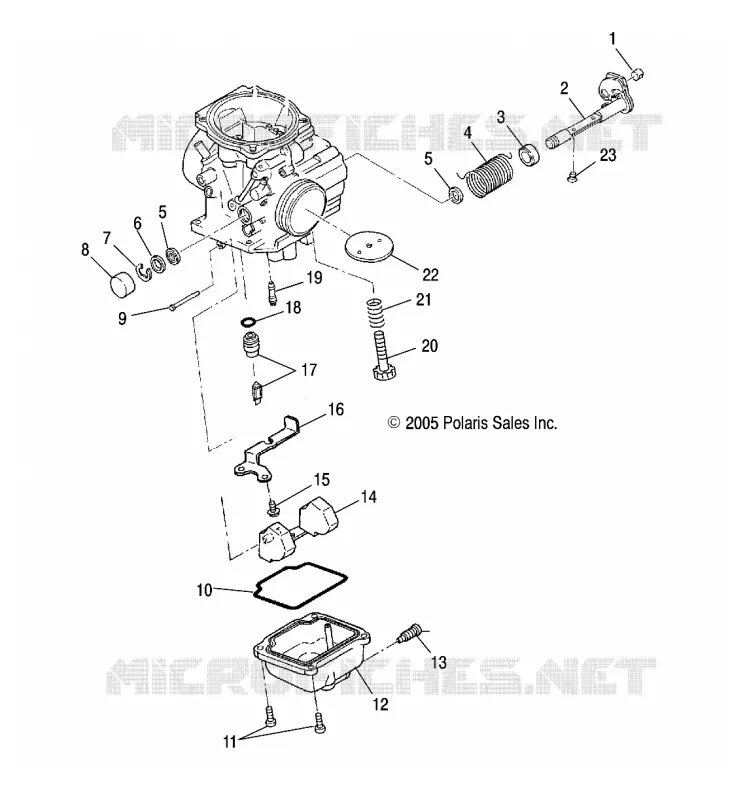

ENGINE, CARBURETOR, LOWER

1

GUIDE CABLE

3084696

$16,79 Unit Price incl. VAT

2

Asm. Shaft Throttle

3131602

$188,99 Unit Price incl. VAT

3

Ring

3131603

$3,14 Unit Price incl. VAT

4

SPRING

3130589

$52,49 Unit Price incl. VAT

5

SEAL

3130515

$20,99 Unit Price incl. VAT

6

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

E-Ring

3130518

$3,14 Unit Price incl. VAT

8

CAP

3130519

$19,94 Unit Price incl. VAT

9

PIN FLOAT

3130361

$18,89 Unit Price incl. VAT

10

O-RING

3130532

$57,74 Unit Price incl. VAT

11

SCREW

3130520

$3,14 Unit Price incl. VAT

12

Asm. Body Float

3130590

$204,74 Unit Price incl. VAT

13

SCREW

3130521

$18,89 Unit Price incl. VAT

14

FLOAT ASM.

3130529

$157,49 Unit Price incl. VAT

15

SCREW

3130591

$7,34 Unit Price incl. VAT

16

PLATE

3130594

$62,99 Unit Price incl. VAT

17

O-RING

3130533

$10,49 Unit Price incl. VAT

18

Valve Needle 1.5

3131360

$99,74 Unit Price incl. VAT

19

JET PILOT #42.5 (#42.5)

3130526

$62,99 Unit Price incl. VAT

20

Screw Adjust

3131423

$41,99 Unit Price incl. VAT

21

SPRING

3130836

$15,74 Unit Price incl. VAT

22

Valve Throttle 100

3131601

Not Available

23

SCREW

3130501

$7,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
