ENGINE, AIR INTAKE SYSTEM FOR SPORTSMAN 400 HO 4X4 - A11MH46AX/AZ FROM 2011

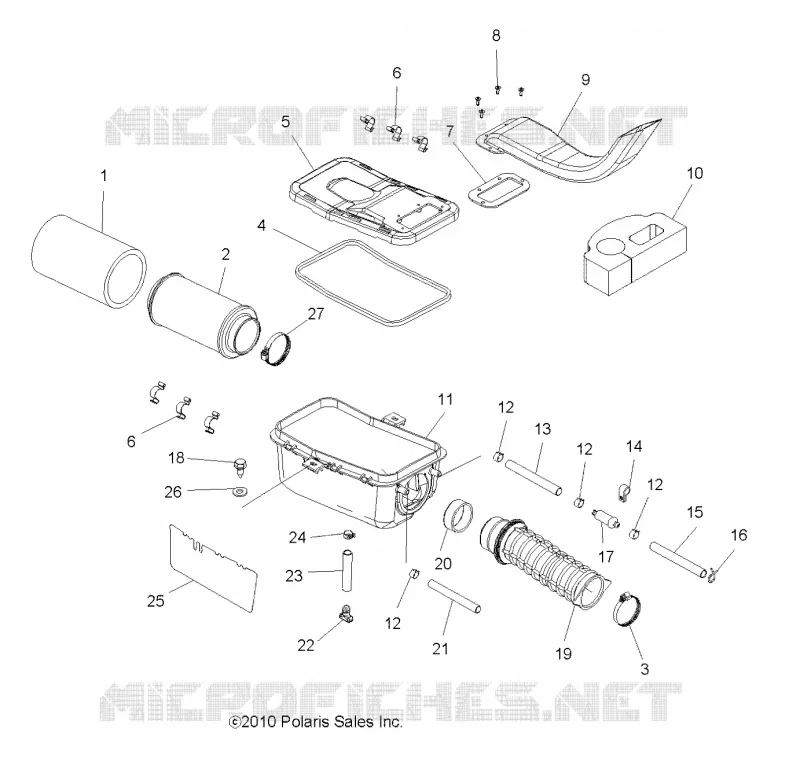

ENGINE, AIR INTAKE SYSTEM

1

Filter Pre-Cleaner Sleeve

5811633

$19,20 Unit Price incl. VAT

2

FILTER AIR INTAKE

7080595

$51,23 Unit Price incl. VAT

3

CLAMP-NARROW BAND 1.38/2.38

7080511

$9,44 Unit Price incl. VAT

4

Seal Air Box Cover

5812829

$52,49 Unit Price incl. VAT

5

Cover Air Box

5432868

$104,99 Unit Price incl. VAT

6

CLIP-AIR BOX

5242044

$17,84 Unit Price incl. VAT

7

GASKET INTAKE

5411422

$10,49 Unit Price incl. VAT

8

SCREW(10)

7517317

$6,29 Unit Price incl. VAT

9

Duct Air Inlet

5436937

$104,99 Unit Price incl. VAT

10

SEAL FOAM

5811626

$57,74 Unit Price incl. VAT

11

Box Air

5438552

$272,99 Unit Price incl. VAT

12

Clamp Hose Spring .69 Inch

7080699

$3,14 Unit Price incl. VAT

13

LINE BREATHER 3/8 ID.

8450073600

$136,49 Unit Price incl. VAT

14

P-Clamp

7080913

$10,49 Unit Price incl. VAT

15

Hose Breather

5413104

Not Available

16

Clamp Hose Spring .75 Inch

7080694

$10,49 Unit Price incl. VAT

17

FILTER BREATHER IN LINE

2530029

$11,54 Unit Price incl. VAT

18

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$4,19 Unit Price incl. VAT

19

Boot Carburetor

5412561

$89,24 Unit Price incl. VAT

20

SLEEVE CARBURETOR INNER

5433847

$27,29 Unit Price incl. VAT

21

Line Breather

5413003

Not Available

22

Plug Trap

5435299

$12,59 Unit Price incl. VAT

23

FUEL LINE

8450059150

$115,49 Unit Price incl. VAT

24

CLAMP HOSE (10)

7080650

$7,34 Unit Price incl. VAT

25

Foil

5813652

$52,49 Unit Price incl. VAT

26

WASHER-FL .281X.750X.062-Y

7555859

$2,09 Unit Price incl. VAT

27

CLAMP-BAND NARROW 60-80MM

7080707

$5,76 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
