1
Engine displacement
0
2
Year
1996
3
Trim
WIDETRAK LX - 0962064
4
Parts Catalog

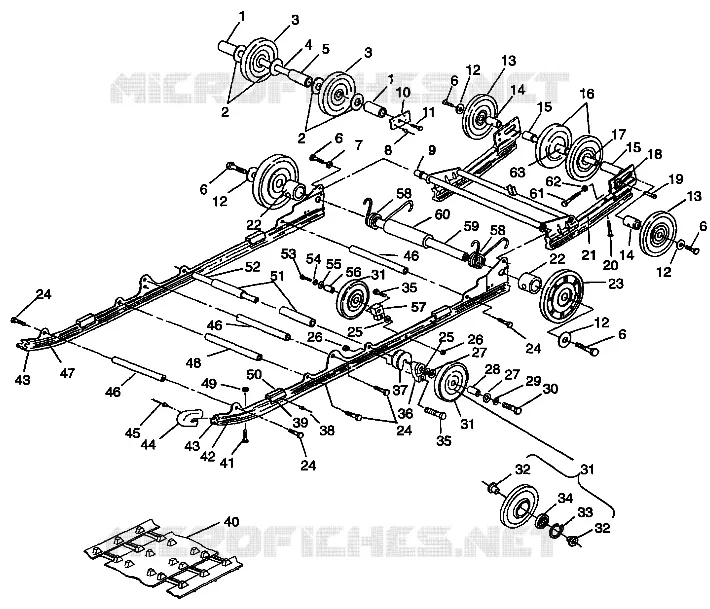

SUSPENSION WIDETRAK LX 0962064 AND EUROPEAN WIDETRAK LX E962064 (4931643164B009)
5
Parts Diagram
Parts Catalog
GEARCASE ASSEMBLY WIDETRAK LX 0962064 AND EUROPEAN WIDETRAK LX E962064 (4931643164B007)
by
FRONT TORQUE ARM WIDETRAK LX 0962064 AND EUROPEAN WIDETRAK LX E962 (4931643164B011)
SUSPENSION WIDETRAK LX 0962064 AND EUROPEAN WIDETRAK LX E962064 (4931643164B009)
1
SPACER
5333019067
$27,29 Unit Price incl. VAT
2
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
3
WHEEL-TRACK CARRIER
1543013
$99,74 Unit Price incl. VAT
4
SHAFT MTG.
5020836
$62,99 Unit Price incl. VAT
5
SPACER
5333020067
$34,64 Unit Price incl. VAT
6
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
7
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
8
RIVET SEMI-TUBE (50)
7661812
Not Available
9
SHAFT PIVOT ARM
5020725
$52,49 Unit Price incl. VAT
10
PLATE TUNNEL CARRIER BLK.
5211220067
Not Available
11
BOLT(10)
7515432
Not Available
12
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
13
WHEEL IDLER NUTMEG
1594063
Not Available
14
SPACER-IDLER-OUTER
5332641
Not Available
15
SPACER R.IDLER SIDE
5333037
Not Available
16
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
17
SHAFT IDLER REAR
5020717
Not Available
18
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
19
RIVET
7621501
$4,19 Unit Price incl. VAT
20
SCREW(10)
7512225
$7,34 Unit Price incl. VAT
21
PIVOT SWING ARM ASM. Substituted by 1541133
1540640
Not Available
22
TUBE SPACER OUTSIDE CENTER
5330171067
$27,29 Unit Price incl. VAT
23
WHEEL IDLER (LX)
1594064
$35,69 Unit Price incl. VAT
24
BOLT
7515542
Not Available
25
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
26
Nut
7542403
Not Available
27
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
28
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
29
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
30
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
31
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
32
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
33
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
34
BEARING
3514303
$20,99 Unit Price incl. VAT
35
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
36
SPACER-.792 X1.010 X1.35
5333012
$20,99 Unit Price incl. VAT
37
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
38
RIVET
7621476
$2,09 Unit Price incl. VAT
39
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
40
TRACK 156#X20#(DEEP WIPER) Substituted by 5411040
5411065
Not Available
40
CLIP TRACK(CAMOPLAST) (10)
5222839
5251273
$18,89 Unit Price incl. VAT
40
CLIP GUIDE
5222840
5251274
$13,64 Unit Price incl. VAT
41
SCREW
7512227
$6,29 Unit Price incl. VAT
42
ASM. RAIL LH [INCL. 1 2 4-9]
1540751
$629,99 Unit Price incl. VAT
43
SLIDER BLK. Substituted by 5521320
5521296
Not Available
44
COVER RAIL TIP
5430627
$62,99 Unit Price incl. VAT
45
RIVET
7621435
$2,09 Unit Price incl. VAT
46
SHAFT PIVOT ARM FRT.
5020718
Not Available
47
ASM. RAIL LH [INCL. 1 2 4-9]
1540752
$629,99 Unit Price incl. VAT
48
SHAFT SPANNER
5020720
$52,49 Unit Price incl. VAT
49
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
50
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
51
SPACER R.SHOCK
5333138
$54,59 Unit Price incl. VAT
52
SHAFT REAR SHOCK Substituted by 5020719
5020651
$68,24 Unit Price incl. VAT
53
SCREW
7512659
$13,64 Unit Price incl. VAT
54
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
55
WASHER
7555804
$7,34 Unit Price incl. VAT
56
SPACER
5332786
$13,64 Unit Price incl. VAT
57
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
58
SPRING EXTENSION REAR
7041231067
$99,74 Unit Price incl. VAT
59
SHAFT
5020726
$62,99 Unit Price incl. VAT
60
SPACER BLK
5333014067
$68,24 Unit Price incl. VAT
61
SCR-3/8-16X3 1/2HXHD TAP GR5-Y
7515459
$10,49 Unit Price incl. VAT
62
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
63
SPACER R.IDLER INNER
5333013
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
