1
Engine displacement
0
2
Year
1996
3
Trim
WIDETRAK LX - 0962064
4
Parts Catalog
HOOD WIDETRAK LX 0962064 AND EUROPEAN WIDETRAK LX E962064 (4931643164A009)
5
Parts Diagram
Parts Catalog
NOSEPAN WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164A007)
by
FRONT SUSPENSION AND SKI WIDETRAK LX 0962064 AND EUROPEAN WIDETRAK LX E9620 (4931643164B001)

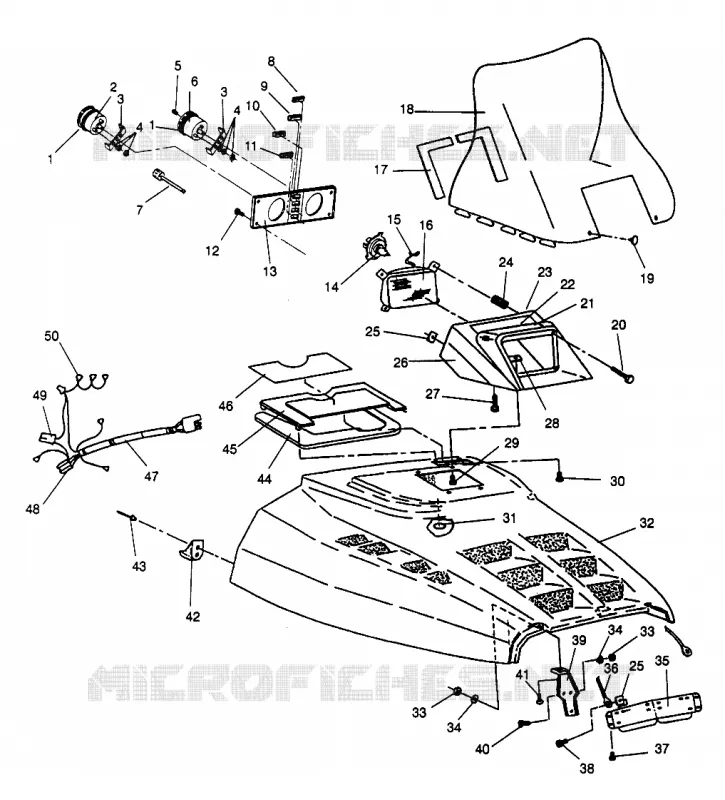

HOOD WIDETRAK LX 0962064 AND EUROPEAN WIDETRAK LX E962064 (4931643164A009)
1
CUSHION TACH/SPEEDO RUBBER
3280151
Not Available
2
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
2
TACHOMETER BACKLIT(2P)
3280149
Not Available
3
BRKT SPEEDO/TACH
3280153
Not Available
4
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
4
NUT
3280158
Not Available
4
WASHER FLAT (10)
3280157
$4,19 Unit Price incl. VAT
5
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
6
SPEEDO KILOMETER
3280159
Not Available
6
SPEEDOMETER BACKLIT
3280148
Not Available
7
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
8
INDICATOR#TEMP#WARN.
4040011
$62,99 Unit Price incl. VAT
9
INDICATOR#LOW-OIL#WARN. (Classic)
4040012
Not Available
10
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
Not Available
11
INDICATOR#REVERSE#WARN.
4040019
Not Available
12
SCREW SCKT.HD.CAP(10)
7512008
Not Available
13
BEZEL INST.
5430924
Not Available
14
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
15
RETAINER H/L BULB
4032063
Not Available
16
HEADLIGHT ASM.
4032040
Not Available
17
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
17
PAD W/S LH BLACK
5810437
Not Available
18
WINDSHIELD CLR X-HIGH
5431630
Not Available
19
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
20
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
21
DECAL POD WARN.TOP [No Longer Available]
7073111
Not Available
22
DECAL POD WARN.BOTT. [No Longer Available]
7073112
Not Available
23
HSG INST TOP BLK
5430923070
Not Available
24
SPRING-ADJ
4032002
Not Available
25
NUT SPEED(10)
7670056
Not Available
26
HSG INST.BOTT.BLK.
5430922070
Not Available
27
SCREW(10)
7512009
Not Available
28
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
29
SCREW
7512283
$7,34 Unit Price incl. VAT
30
SCREW(10)
7511840
Not Available
31
RETAINER WINDSHIELD
5410970
$2,09 Unit Price incl. VAT
32
HOOD WDTRK LIQ. (Incl. Foam & Foil)
2631748210
Not Available
33
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
34
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
35
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
36
CABLE HD.RETAINER (Classic & 400)
7080360
$47,24 Unit Price incl. VAT
37
SCREW(10)
7511861
Not Available
38
BOLT
7511989
Not Available
39
HINGE ASM HD BLK
2635005067
Not Available
40
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
41
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
42
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
43
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
44
SEAL INTAKE
5810597
Not Available
45
PANEL ASM INTAKE EMERALD
2620094210
Not Available
46
DECAL DASH WARN.(PARK BRK) Substituted by 7075457
7075440
Not Available
47
HARNESS H/L POD
2460552
Not Available
48
HOUSING
4020052
Not Available
49
HOUSING
4020115
Not Available
50
HOUSING
4020114
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
