Engine displacement
500
2
Year
2012
3
Trim
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR
4
Parts Catalog
COOLING SYSTEM
5

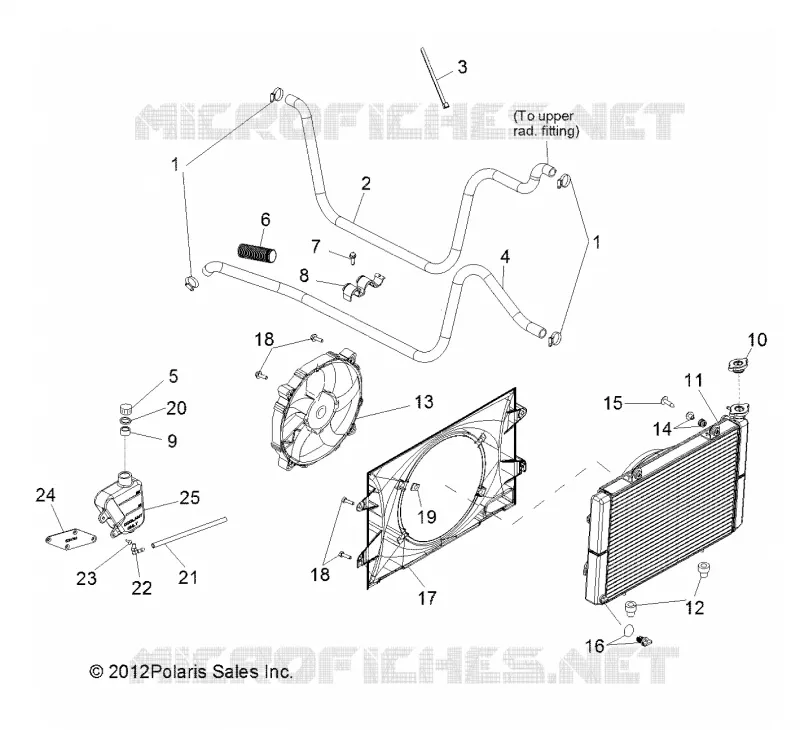

Parts Diagram
Parts Catalog
CAMSHAFT VALVES
by
CRANKCASE
COOLING SYSTEM
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
1
CLAMP-HOSE 13/16#-1 1/2#
7081174
$13,64 Unit Price incl. VAT
2
Hose Engine Out Radiator In
5414254
$188,99 Unit Price incl. VAT
3
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
4
Hose Radiator Out Engine In
5414253
$246,74 Unit Price incl. VAT
5
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
6
CONDUIT FLEX
552128715
$19,94 Unit Price incl. VAT
7
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
8
CLIP ROUTING
5438331
$10,49 Unit Price incl. VAT
9
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
10
CAP PRESSURE
1240300
$73,49 Unit Price incl. VAT
11
Radiator Flat [Built 10/01/09 and After]
1240528
1240721
$913,49 Unit Price incl. VAT
12
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
13
ASM. FAN
2410865
$289,79 Unit Price incl. VAT
14
ASM. GROMMET AND INSERT
5413155
$7,34 Unit Price incl. VAT
15
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
16
Valve Plastic Radiator/Cooler Drain
7052410
$52,49 Unit Price incl. VAT
17
SHROUD FAN
5436852
$83,99 Unit Price incl. VAT
18
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
19
CLIP-#U# M6.0X1.0
7547366
$9,44 Unit Price incl. VAT
20
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
21
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
22
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
BRACKET SURGE TANK
5254763
$10,49 Unit Price incl. VAT
25
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
