1
Engine displacement
500
2
Year
2012
3
Trim
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR
4
Parts Catalog

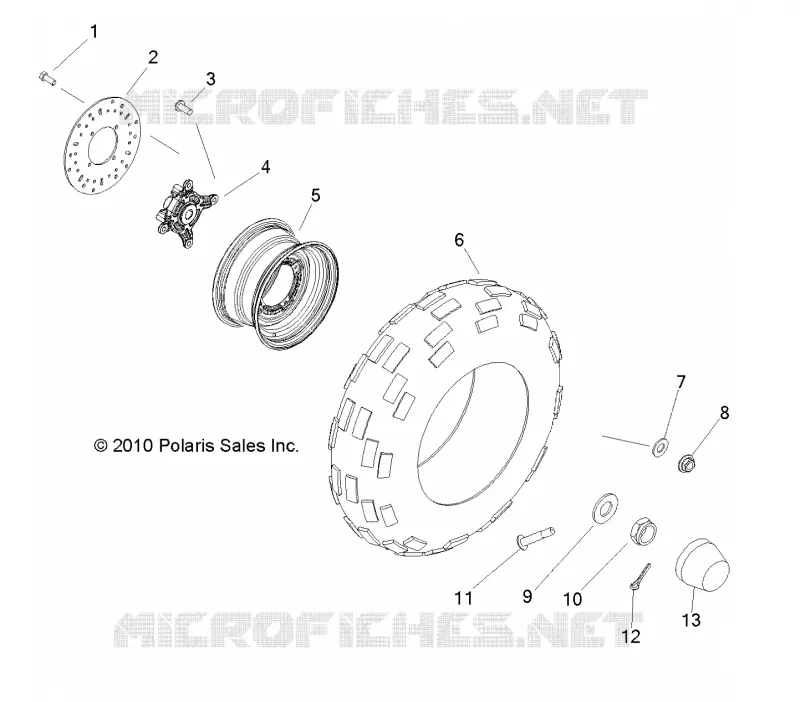

WHEELS, FRONT
5
Parts Diagram
Parts Catalog
REAR SUSPENSION STABILIZER BAR
by
WHEELS, REAR
WHEELS, FRONT
2
3
4
5
5
6
7
8
8
9
10
11
12
13
13
1
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
2
DISC-BRAKE 8.95 OD .158
5244314
$141,74 Unit Price incl. VAT
3
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
4
HUB WHEEL
5135207
$167,99 Unit Price incl. VAT
5
RIM-FR 12X6 CAST 16.2 (199)BLK
1521252067
$329,69 Unit Price incl. VAT
5
WELD-RIM FRONT 12X6 10GA BLK
1520796067
1523451-067
$168,30 Unit Price incl. VAT
6
TIRE FRONT 25X10-12
5414083
5419026
$160,43 Unit Price incl. VAT
7
WASHER-.385X.88X.075 FL-Y THR
7556242
$4,19 Unit Price incl. VAT
8
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
8
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
9
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
10
NUT-CASTLE M18X1.5X13
7547406
$9,44 Unit Price incl. VAT
11
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
12
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
13
Cap Rim
1521128
$35,69 Unit Price incl. VAT
13
Cover Dust Hub
5413427
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
