1
Engine displacement
500
2
Year
2012
3
Trim
RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR
4
Parts Catalog
SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
STEERING
by
TAILGATE ASM.

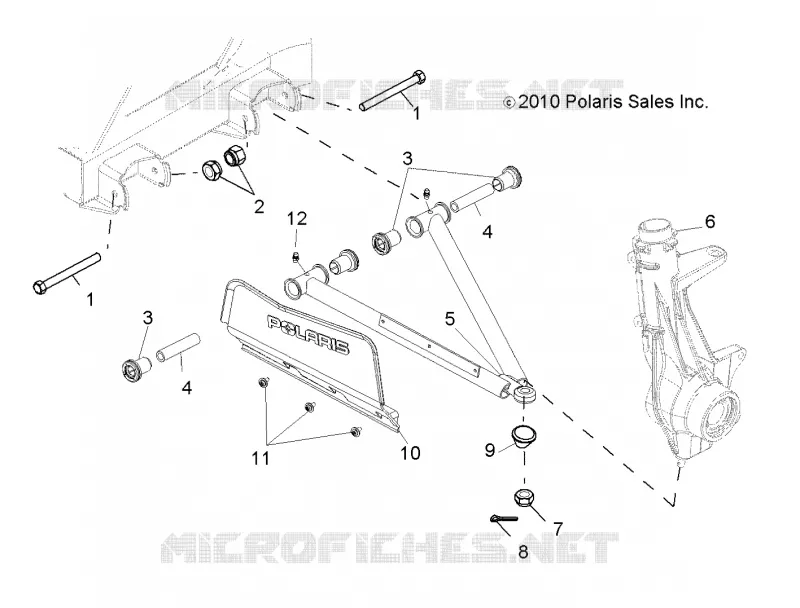

SUSPENSION, A-ARM AND STRUT MOUNTING
1
1
2
3
3
4
4
5
5
6
7
8
9
10
10
11
12
1
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
2
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
3
BUSHING A-ARM. SHORT BLACK
5439270
$4,19 Unit Price incl. VAT
4
SHAFT PIVOT 73.96MM
5137591
$10,49 Unit Price incl. VAT
5
A-Frame RH Matte Black [Built 2/08/11 and After]
1542945458
$220,49 Unit Price incl. VAT
5
A-Frame LH Matte Black [Built 2/08/11 and After]
1542944458
$220,49 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
8
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
9
BOOT-BALLJOINT GREASELESS STRT
5412658
$9,44 Unit Price incl. VAT
10
Shield CV Front RH Black
5435029070
$47,24 Unit Price incl. VAT
10
Shield CV Front LH Black
5435028070
$47,24 Unit Price incl. VAT
11
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
12
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
