1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS SKS 155 SC SELECT
4
Parts Catalog
BODYWORK
5

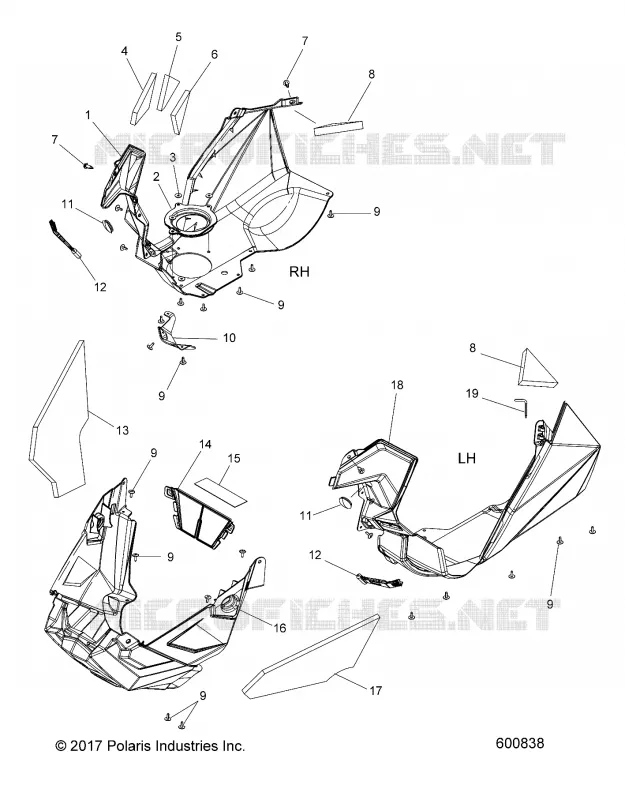

Parts Diagram
Parts Catalog
by
HOOD ASM.
BODYWORK
10
11
11
12
12
13
14
15
16
17
18
19
1
ASM. FENDER RH [INCL. 2-6 8-12]
2635757
Not Available
2
BOOT EXHAUST OUTLET
5450778
5418261
$52,49 Unit Price incl. VAT
3
WASHER
7556034
$4,19 Unit Price incl. VAT
4
FOAM FENDER FRONT
5814148
$8,39 Unit Price incl. VAT
5
FOAM FENDER MIDDLE
5814146
$8,39 Unit Price incl. VAT
6
FOAM FENDER BOTTOM
5814147
$8,39 Unit Price incl. VAT
7
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
8
FOAM FENDER REAR
5814145
$8,39 Unit Price incl. VAT
9
RIVET
7621467
$2,09 Unit Price incl. VAT
10
DEFLECTOR SNOW EXHAUST
5258861
$62,99 Unit Price incl. VAT
11
PLUG CLUTCH HOLE
5410582
$15,74 Unit Price incl. VAT
12
STRAP RUBBER
5438262
$10,49 Unit Price incl. VAT
13
FOAM NOSEPAN RH
5814131
$68,24 Unit Price incl. VAT
14
CLOSEOFF NOSEPAN
5451574
$62,99 Unit Price incl. VAT
15
FIBER-5.75#X1.75#
5814149
$12,59 Unit Price incl. VAT
16
ASM. NOSEPAN BLACK [INCL FOAM FIBER REFLECTORS]
2635042070
2640173-070
$230,99 Unit Price incl. VAT
17
FOAM NOSEPAN LH
5814130
$47,24 Unit Price incl. VAT
18
ASM. FENDER LH [INCL. 8 11 12]
2635756
$204,74 Unit Price incl. VAT
19
TOOL BELT REMOVAL
2875911
$24,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
