1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS SKS 155 SC SELECT
4
Parts Catalog

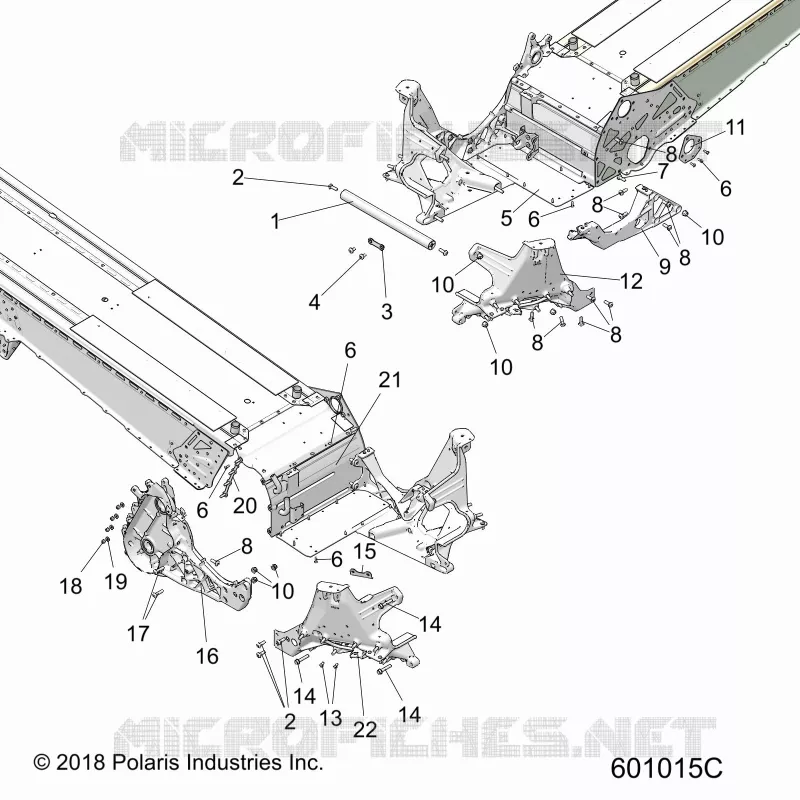

CHASSIS, BULKHEAD ASM.
5
Parts Diagram
Parts Catalog
ENGINE, REED VALVE AND THROTTLE BODY ADAPTOR
by
SWITCHES, SENSORS AND COMPONENTS
CHASSIS, BULKHEAD ASM.
-
-
-
1
2
2
3
4
5
6
6
6
6
6
7
8
8
8
8
8
8
9
10
10
10
10
11
12
12
13
14
14
14
15
16
17
18
19
20
21
21
22
22
-
KIT LORD 406 REPAIR KIT 50 ML [ADHESIVE]
2204171
2830614
$517,64 Unit Price incl. VAT
-
KIT LORD MIX NOZZLES 12 PIECE
2204172
$14,69 Unit Price incl. VAT
-
KIT LORD 406 50 ML CARTRIDGE [ADHESIVE]
2204400
$369,59 Unit Price incl. VAT
1
TUBE-CROSSOVER EXTRUDED
5140781
$173,24 Unit Price incl. VAT
2
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
3
ASM-NUT PLATE M8 47MM
1020829
$23,09 Unit Price incl. VAT
4
SCR-TXTH-M8X1.25X15 8.8ZOD P80
7519109
$3,14 Unit Price incl. VAT
5
FLOOR BULKHEAD
5256849
$47,24 Unit Price incl. VAT
6
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
7
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7520297
$7,34 Unit Price incl. VAT
8
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
9
ASM. BRACE LOWER LH [REQUIRES ADHESIVE][INCL. DOWEL PINS]
1023784
$209,99 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
FLANGETTE-3BOLT 0MM OFFSET
5258020
$23,09 Unit Price incl. VAT
12
ASM. CLIP W/STUD RMK LH [INCL. STUDS][REQUIRES ADHESIVE]
1023155
$561,74 Unit Price incl. VAT
12
STUD
7519204
$36,74 Unit Price incl. VAT
13
SCR-TXPH-M6X1.0X15 GR5 ZOD NYL
7518656
$7,34 Unit Price incl. VAT
14
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$3,14 Unit Price incl. VAT
15
ASM. BRKT. IDLER TOP
1019666
1026546
$47,24 Unit Price incl. VAT
16
ASM-CHAINCASE INTERMD RMK [3# TRACK CHAINCASE MODEL ONLY][REQUIRES ADHESIVE][INCL. BRNGS. SEALS]
1333255
$431,54 Unit Price incl. VAT
17
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$13,64 Unit Price incl. VAT
18
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$4,19 Unit Price incl. VAT
19
WASHER-6.2X14.25X2 ZC
7556588
$4,19 Unit Price incl. VAT
20
ASM. STUD PLATE
1020066
$26,24 Unit Price incl. VAT
21
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
21
ASM-COOLER BULKHEAD
1241233
$703,49 Unit Price incl. VAT
22
STUD
7519204
$36,74 Unit Price incl. VAT
22
ASM. CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]
1023783
$503,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
