1
Engine displacement
800
2
Year
2011
3
Trim
SPORTSMAN 800 EFI 6X6 - A11CF76AA
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, MID GEARCASE MOUNTING
DRIVE TRAIN, MAIN GEARCASE
-
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
1
2
2
3
3
3
3
4
4
5
6
6
6
7
8
9
10
11
12
13
14
-
Asm. Gearcase [Incl. All]
1332716
$4 866,74 Unit Price incl. VAT
1
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
2
SCREW
3233826
$17,84 Unit Price incl. VAT
3
COVER SECTOR GEARS MACHINED
3234188
$209,99 Unit Price incl. VAT
4
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
5
PAWL DETENT
3233829
$68,24 Unit Price incl. VAT
6
SHAFT SHIFT
3233831
$115,49 Unit Price incl. VAT
7
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
8
SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON
3234892
$68,24 Unit Price incl. VAT
9
Label Oil Fill/Level Check
3234143
Not Available
10
PLUG 3/4-16 41775 INTERNAL HEX
3233794
$31,49 Unit Price incl. VAT
11
Gearcase Main
3234358
Not Available
12
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
13
PLATE PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
14
Gearcase LH
3234221
$666,74 Unit Price incl. VAT
15
Seal
3233866
3234851
$68,24 Unit Price incl. VAT
16
SCREW
3234042
$13,64 Unit Price incl. VAT
17
Bracket Transmission Mount
3234142
$52,49 Unit Price incl. VAT
18
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
19
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
20
DISC LOCKOUT
3233838
$52,49 Unit Price incl. VAT
21
NUT LOCK
3234043
$10,49 Unit Price incl. VAT
22
STAR DETENT
3233909
$52,49 Unit Price incl. VAT
23
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
24
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
25
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
26
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
27
BELLCRANK .510 HOLE 92 ~
3234584
$52,49 Unit Price incl. VAT
28
SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25
3234114
$13,64 Unit Price incl. VAT
29
Stop Torque
1016346
Not Available
30
MAGNETIC PLUG 3/4-16 INTERNAL HEX
3234529
3233794
$31,49 Unit Price incl. VAT
31
STOP-TORQUE COURSE 3/8-16 1.50
3021354
$47,24 Unit Price incl. VAT
32
NUT
7542440
7542404
$3,14 Unit Price incl. VAT

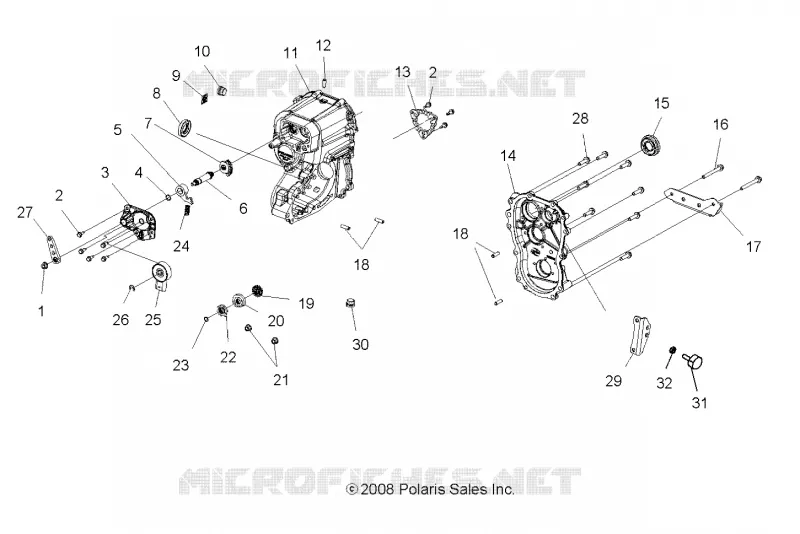

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
