1
Engine displacement
800
2
Year
2011
3
Trim
SPORTSMAN 800 EFI 6X6 - A11CF76AA
4
Parts Catalog

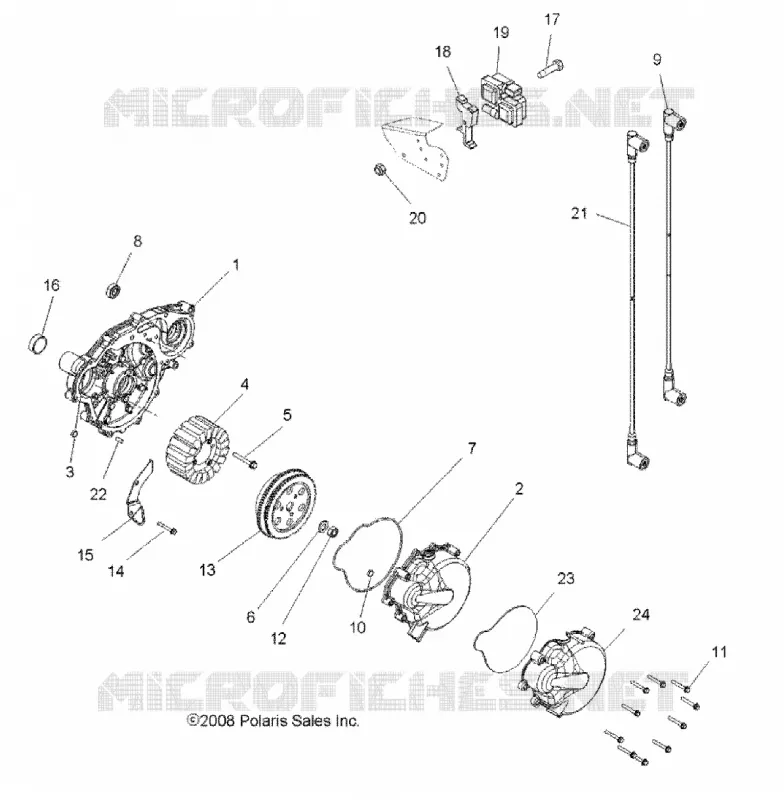

IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESSES
by
SWITCHES AND SENSORS AND ECM
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
11
15
16
17
18
19
20
21
22
23
24
1
1
Asm. Engine Cover Magneto
1203626
$404,24 Unit Price incl. VAT
2
ASM. COVER STATOR [INCL. BUSHING]
1204144
$335,99 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
Stator
4011982
2208144
$1 889,99 Unit Price incl. VAT
5
SCR-M6X1.0X35 SOC/CP-Y/D
7517848
$10,49 Unit Price incl. VAT
6
WASHER
7555907
$10,49 Unit Price incl. VAT
7
Seal Stator Cover [Built 12/15/09 and After]
5413826
5413972
$7,34 Unit Price incl. VAT
8
SEAL OIL
5412455
$41,99 Unit Price incl. VAT
9
Wire Spark Plug 49.5cm
4012438
$115,49 Unit Price incl. VAT
10
BUSHING
3514553
Not Available
11
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
12
NUT
7547213
$9,44 Unit Price incl. VAT
13
Flywheel
4011981
2208144
$1 889,99 Unit Price incl. VAT
14
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
15
Bracket Wire Holddown
5245364
$73,49 Unit Price incl. VAT
16
SEAL FLANGED
5412881
$57,74 Unit Price incl. VAT
17
SCREW(10)
7515156
$7,34 Unit Price incl. VAT
18
SPACER-COIL MOUNT
5436577
$7,34 Unit Price incl. VAT
19
Kit Ignition Coil (Incl. 24 26 28)
2876049
$451,49 Unit Price incl. VAT
20
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
21
Wire Spark Plug 59.3 cm
4012439
$115,49 Unit Price incl. VAT
22
PIN DOWEL
7661946
7663002
$9,44 Unit Price incl. VAT
23
Cover Sound Dampening
5813050
$62,99 Unit Price incl. VAT
24
Cover Stator Outer
5436652
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
