1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog
SEAT GAS TANK
5

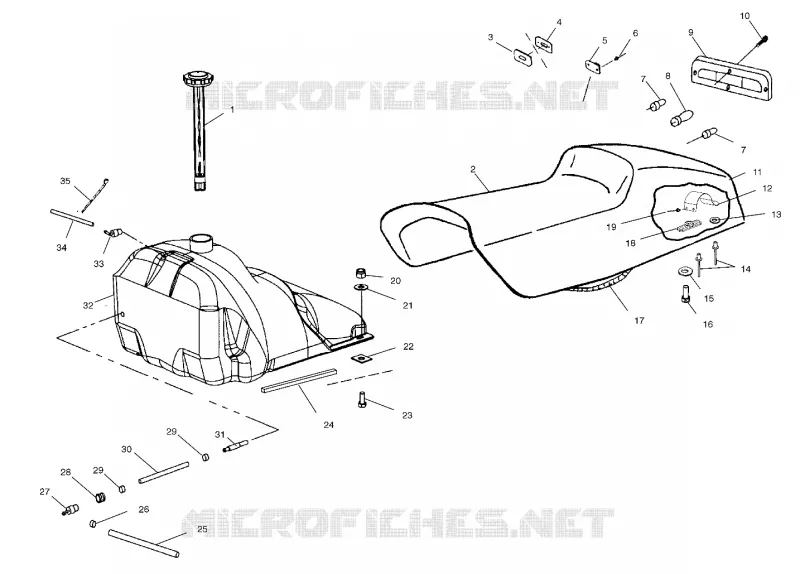

Parts Diagram
Parts Catalog
CHASSIS
by
NOSEPAN
SEAT GAS TANK
1
2
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
1
2
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
1
CAP FUEL 12.5 W/GAUGE
1240066
Not Available
2
Cover Seat [Red] [Red]
2682753
Not Available
2
Asm. Seat [Red] [Red]
2682752
Not Available
2
Asm. Seat [Black] [Black]
2682755
Not Available
2
Cover Seat [Black] [Black]
2682756
Not Available
3
GROMMET RELATCH 1# BOTT.(10)
7080550
Not Available
4
GROMMET RELATCH 1# TOP(10)
7080549
Not Available
5
TWISTLOCK RELATCH 1# W/HOLE(10)
7080548
Not Available
6
RIVET(50)
7621337
$2,09 Unit Price incl. VAT
7
BULB TAILLIGHT(10)
4030024
$9,44 Unit Price incl. VAT
8
BULB BRAKELIGHT
4030045
Not Available
9
LENS TAILLIGHT
5430423
Not Available
10
SCREW(10)
7511840
Not Available
11
HOUSING-TAILLIGHT
5433341
Not Available
12
RETAINER-CLIP TOOL POUCH
5243185
$18,68 Unit Price incl. VAT
13
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
14
RIVET POP 5/32#(50) Substituted by 7621307
7621319
$2,09 Unit Price incl. VAT
15
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
16
SCREW(10)
7515159
$9,44 Unit Price incl. VAT
17
HARNESS TAILLIGHT
2460399
Not Available
18
NUT-SEAT
5631194
$7,34 Unit Price incl. VAT
19
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
20
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
21
WASHER-.327X.875X.090 FL-Y
7555960
$7,34 Unit Price incl. VAT
22
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
23
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
24
FOAM SEAL
5810947
$8,39 Unit Price incl. VAT
25
TUBING-ETHER ERETHNE 600CM SVC Substituted by 8350018-160
8350018600
8450117-250
$99,74 Unit Price incl. VAT
26
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
27
FITTING 1/4# 90° DEX
7052259
Not Available
28
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
29
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
30
LINE FUEL
8350019600
8350019-160
$73,49 Unit Price incl. VAT
31
PICK-UP-FUEL W/FILTER 105MICRN
7052301
$26,24 Unit Price incl. VAT
32
Asm. Fuel Tank [Incl. 31-33]
2520266
$343,34 Unit Price incl. VAT
33
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
34
LINE FUEL [BULK SVC]
8450061600
$115,49 Unit Price incl. VAT
35
CABLE TIE RELEASABLE
7080804
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
