1
Engine displacement
500
2
Year
2002
3
Trim
500 XC SP
4
Parts Catalog

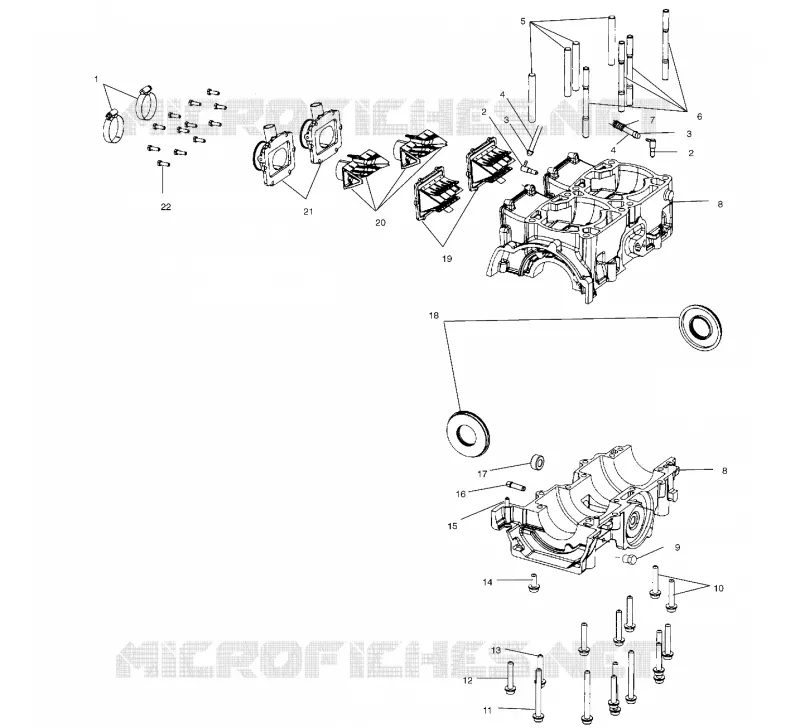

CRANKCASE
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
PISTON CRANKSHAFT
CRANKCASE
1
2
2
3
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
2
2
3
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
CLAMP HOSE
7080681
$17,84 Unit Price incl. VAT
2
VALVE CHECK
7051020
$68,24 Unit Price incl. VAT
3
CLAMP
7080603
$3,14 Unit Price incl. VAT
4
LINE FUEL [BULK SVC]
8450061600
$115,49 Unit Price incl. VAT
5
STUD CYL 81MM
5132196
$33,06 Unit Price incl. VAT
6
STUD CYL 118MM
5132197
Not Available
7
TUBING CONVOLUTED
836005625
$12,59 Unit Price incl. VAT
8
KIT-CRANKCASE 1202176 (Incl. 2 3 5-10)
2201931
$846,29 Unit Price incl. VAT
9
PLUG Substituted by 7052311
7051529
Not Available
10
BOLT 55MM
7517785
$17,84 Unit Price incl. VAT
11
BOLT 80MM
7517784
$15,74 Unit Price incl. VAT
12
SCR-M6X1.0X45 HX/FL-Y
7516825
$10,49 Unit Price incl. VAT
13
SCR-SHFL-M8X1.25X45 10.9 ZY3
7517786
$11,54 Unit Price incl. VAT
14
SCR-6-32X3/8HEXWH TAPTITE ZY3
7517577
$7,34 Unit Price incl. VAT
15
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
16
FITTING
7052145
$17,84 Unit Price incl. VAT
17
BRNG PUMP SHAFT [No Longer Available]
5010390
Not Available
18
SEAL FLANGED
5411394
5415026
$41,99 Unit Price incl. VAT
19
VALVE REED
1201825
Not Available
20
STUFFER REED 75.5MM(38MM.CARB)
5432852
Not Available
21
ADAPTER CARB TM/RACK 440 BASE
1253217
Not Available
22
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
