1
Engine displacement
400
2
Year
2010
3
Trim
RANGER 4X4 400 HO - R10RH45AG/AH/AR
4
Parts Catalog
BRAKES, LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
DRIVE TRAIN, CLUTCH COVER

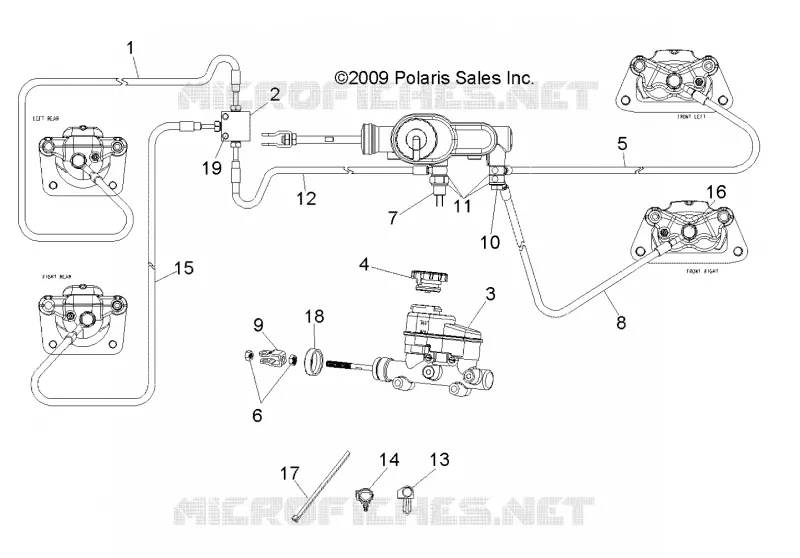

BRAKES, LINES AND MASTER CYLINDER
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Line Brake Rear LH
1911439
$125,99 Unit Price incl. VAT
2
FITTING-TEE BRAKE
7052293
$110,24 Unit Price incl. VAT
3
ASM. MASTER CYLINDER
1911515
1912463
$482,99 Unit Price incl. VAT
3
Kit Assy Master Cylinder Tandem
2204117
$74,54 Unit Price incl. VAT
4
Kit Cap Master Cylinder
2204118
$20,99 Unit Price incl. VAT
5
LINE BRAKE FRONT LEFT
1911436
$104,99 Unit Price incl. VAT
6
Kit Nut Clevis Master Cylinder [INCL. 2 JAM NUTS]
2204120
$6,29 Unit Price incl. VAT
7
SWITCH PRESSURE BRAKE
4012399
$57,74 Unit Price incl. VAT
8
LINE BRAKE FRONT RH
1911437
$136,49 Unit Price incl. VAT
9
Kit Clevis Master Cylinder
2204119
$11,54 Unit Price incl. VAT
10
BOLT-DOUBLE BANJO M10X1.25
1911194
$41,99 Unit Price incl. VAT
11
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
12
Line Brake Master Cylinder to Rear
1911438
$173,24 Unit Price incl. VAT
13
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
14
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
15
LINE BRAKE REAR RH
1911440
$125,99 Unit Price incl. VAT
16
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
17
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
18
Kit Dust Boot Master Cylinder
2204121
$9,44 Unit Price incl. VAT
19
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
