1
Engine displacement
400
2
Year
2010
3
Trim
RANGER 4X4 400 HO - R10RH45AG/AH/AR
4
Parts Catalog
ENGINE, CARBURETOR, UPPER
5
Parts Diagram
Parts Catalog
ENGINE, CARBURETOR, LOWER
by
COOLING SYSTEM

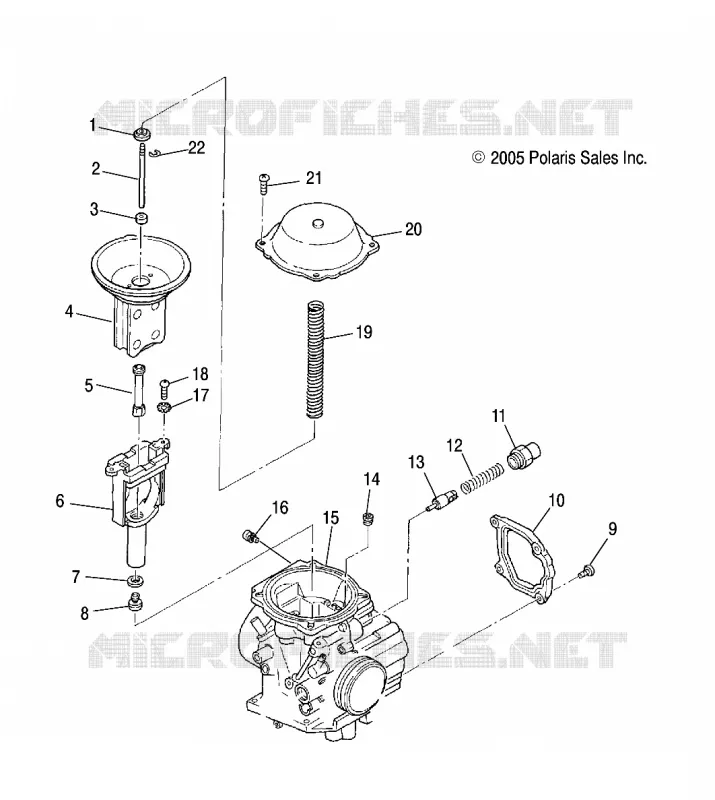

ENGINE, CARBURETOR, UPPER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
RING
3130507
$10,49 Unit Price incl. VAT
2
Needle Jet 4IB33
3131604
$83,99 Unit Price incl. VAT
3
RING
3130752
$10,49 Unit Price incl. VAT
4
DIAPHRAGM ASM.
3130732
$246,74 Unit Price incl. VAT
5
Jet Needle P-6
3131363
$73,49 Unit Price incl. VAT
6
JETBLOCK ASM.
3130504
$120,74 Unit Price incl. VAT
7
WASHER
3130014
$3,14 Unit Price incl. VAT
8
Jet Main #150
3131708
$16,79 Unit Price incl. VAT
9
SCREW
3130535
$13,64 Unit Price incl. VAT
10
COVER
3130511
$83,99 Unit Price incl. VAT
11
Holder Guide
3131396
$27,29 Unit Price incl. VAT
12
SPRING
3130538
$10,49 Unit Price incl. VAT
13
Asm. Plunger
3131606
$89,24 Unit Price incl. VAT
14
JET AIR #160 (#160)
3130625
$27,29 Unit Price incl. VAT
15
Carburetor
3131745
$1 081,49 Unit Price incl. VAT
16
ASM. SCREW AND WASHER
3085698
7517276
$13,64 Unit Price incl. VAT
17
WASHER SPRING
3130540
$9,44 Unit Price incl. VAT
18
SCREW
3130541
$20,99 Unit Price incl. VAT
19
SPRING
3130505
$52,49 Unit Price incl. VAT
20
COVER
3130503
$125,99 Unit Price incl. VAT
21
Screw
3130924
$3,14 Unit Price incl. VAT
22
E-RING
3130508
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
