1
Engine displacement
1000
2
Year
2021
3
Trim
RANGER 1000 FULL SIZE WINTER PACKAGE
4
Parts Catalog

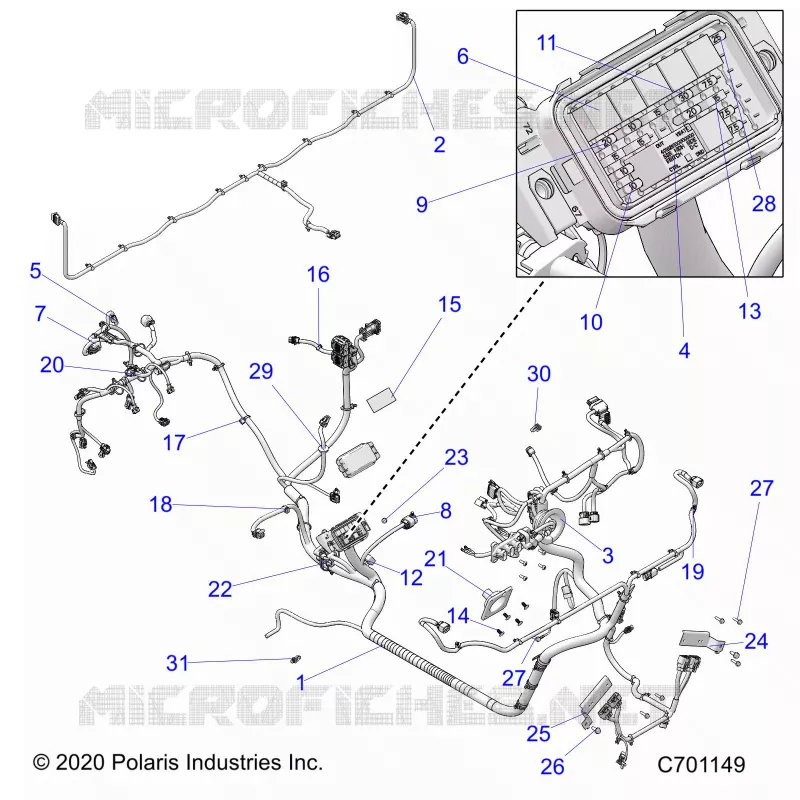

ELECTRICAL, WIRE HARNESS
5
Parts Diagram
Parts Catalog
ELECTRICAL, SENSORS AND MODULES
by
ENGINE, AIR INTAKE MANIFOLD
ELECTRICAL, WIRE HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
1
HARN-CHASSIS FO 1000SOC
2415386
$2 661,74 Unit Price incl. VAT
2
HARNESS BOX RANGER RC
2413818
$125,99 Unit Price incl. VAT
3
GROMMET-HOOD LINER SPLIT
5417082
$13,64 Unit Price incl. VAT
4
RELAY - SSR 10A
4018251
$115,49 Unit Price incl. VAT
5
CAP EVAP CONNECTOR
4018066
$8,39 Unit Price incl. VAT
6
RELAY - SPST 12V 20A EPXY HFA
4016819
$68,24 Unit Price incl. VAT
7
COVER-FUSEHOLDER
4012260
$19,94 Unit Price incl. VAT
8
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
9
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
10
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
11
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
12
BREAKER-CIRCUIT 20 AMP SEALED
2410881
$141,74 Unit Price incl. VAT
13
FUSE-MINI BLADE 15 AMP
2410280
4010859
$15,74 Unit Price incl. VAT
14
CLIP-FIR TREE DART 6.35MM
7670090
$2,09 Unit Price incl. VAT
15
DECAL-RELAY/FUSE BLOCK BASE
7300220
Not Available
16
CLIP-EDGE 1-3MM THICKNESS
7082428
$9,44 Unit Price incl. VAT
17
CLIP-EDGE 1-3mm THICKNESS
7082403
$9,44 Unit Price incl. VAT
18
CLIP-EDGE 1-3mm THICKNESS
7082402
$13,64 Unit Price incl. VAT
19
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
20
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
21
GROMMET - 65MM W/FLANGE BLK
5814560
$24,14 Unit Price incl. VAT
22
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
23
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
24
BRKT-MOUNT REG
5263643
$73,49 Unit Price incl. VAT
25
BRKT-MOUNT REG [RRS99CK]
5267612
$31,49 Unit Price incl. VAT
26
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
27
SCR-TFHFL-M6X1.0X25 ZY3
7520715
$7,34 Unit Price incl. VAT
28
FUSE-25A MINI BLADE
4011653
$16,79 Unit Price incl. VAT
29
GROMMET-USB
5415308
$7,34 Unit Price incl. VAT
30
CLIP-EDGE 3-6MM THICKNESS
7082404
$17,84 Unit Price incl. VAT
31
CLIP-FIR TREE 9.7-10.0MM HOLE
7082414
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
