1
Engine displacement
1000
2
Year
2021
3
Trim
RANGER 1000 FULL SIZE WINTER PACKAGE
4
Parts Catalog
STEERING
5

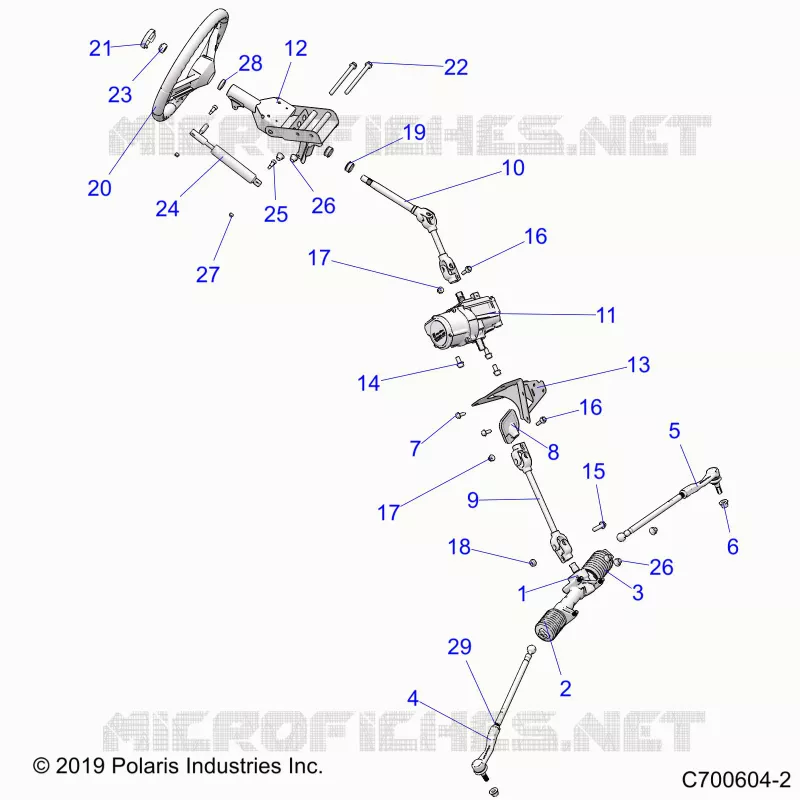

Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUALS
by
FRONT SUSPENSION
STEERING
1
2
2
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
26
27
28
29
1
ASM-GEAR BOX STEERING [INCL. 2-6 QTY 3 of 19]
1824790
1825059
$997,49 Unit Price incl. VAT
2
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
3
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
4
ROD-END TAPERED RH
7061216
$157,49 Unit Price incl. VAT
5
ROD-END TAPERED LH
7061215
$157,49 Unit Price incl. VAT
6
NUT-M12X1.5 FLG NYLOC-OLIVE D
7547334
$9,44 Unit Price incl. VAT
7
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
8
GROMMET-STEERING
5415579
$16,79 Unit Price incl. VAT
9
SHAFT STEERING LOWER W/JOINT EPAS
1823667
$241,49 Unit Price incl. VAT
10
SHAFT STEERING UPPER
1823891
$272,99 Unit Price incl. VAT
11
ASM-POWER STEERING LT 2.5T
2414878
$3 097,49 Unit Price incl. VAT
12
ASM-TILT STEERING RVTD M10 BLK [INCL.10]
1824420458
$283,49 Unit Price incl. VAT
13
WELD-EPAS MNT BLK
1021526329
$89,24 Unit Price incl. VAT
14
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
15
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
16
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$3,14 Unit Price incl. VAT
17
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
18
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
19
BUSHING-STEERING
7556675
$24,14 Unit Price incl. VAT
20
WHEEL-STEERING 14# [ED4FA/ED4DA][SD4CA]
1823622
$246,74 Unit Price incl. VAT
21
CAP-STEERING WHEEL XP
5456356
$20,99 Unit Price incl. VAT
22
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
23
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
24
ASM-SHOCK OIL LOCKING MACH
7044098
$178,49 Unit Price incl. VAT
25
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
$13,64 Unit Price incl. VAT
26
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
27
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
28
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
29
NUT JAM LH THREAD
2205058
$41,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
