1
Engine displacement
500
2
Year
1994
3
Trim
EURO 500 EFI - E942774
4
Parts Catalog
MAGNETO ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (49274127410040)
5
Parts Diagram
Parts Catalog
OIL PUMP ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (49274127410039)
by
RECOIL STARTER ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (49274127410041)

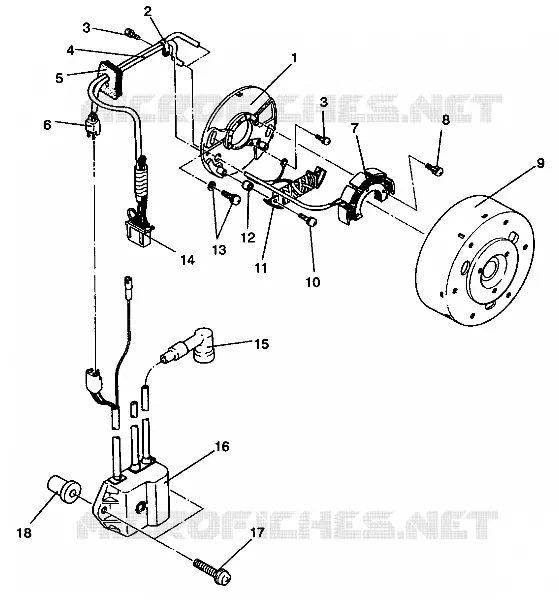

MAGNETO ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (49274127410040)
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
PLATE ASM.
3084634
Not Available
1
PLATE COIL
3083987
$524,99 Unit Price incl. VAT
2
CLAMP
3081296
Not Available
3
SCREW&WASHER (10)
3081260
Not Available
4
HARNESS WIRE
3084362
Not Available
5
GROMMET
3082969
Not Available
6
COUPLER
3083909
$41,99 Unit Price incl. VAT
7
STATOR
3084349
Not Available
8
SCREW(10)
3082365
$6,29 Unit Price incl. VAT
9
FLYWHEEL
3084358
Not Available
10
SCREW & WASHER
3083423
$6,29 Unit Price incl. VAT
11
COIL EXCITER
3083984
$173,24 Unit Price incl. VAT
12
COLLAR (Touring Only)
3084638
Not Available
13
SCREW&WASHER (10)
3082175
Not Available
14
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
15
CAP SPARK PLUG (10)
4020129
4083595
$52,49 Unit Price incl. VAT
16
COIL IGNITION
3084288
Not Available
17
SCREW AND WASHER
3083784
$4,19 Unit Price incl. VAT
18
NUT-RUBBER
3083240
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
