1
Engine displacement
500
2
Year
1994
3
Trim
EURO 500 EFI - E942774
4
Parts Catalog
BACKREST 500 EFI SKS E942574 (49274127410004)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK ASSEMBLY 500 EFI E942774 AND EFI SKS E942574 (49274127410003)
by
NOSEPAN ASSEMBLY 500 EFI E942774 AND EFI SKS E942574 (49274127410005)

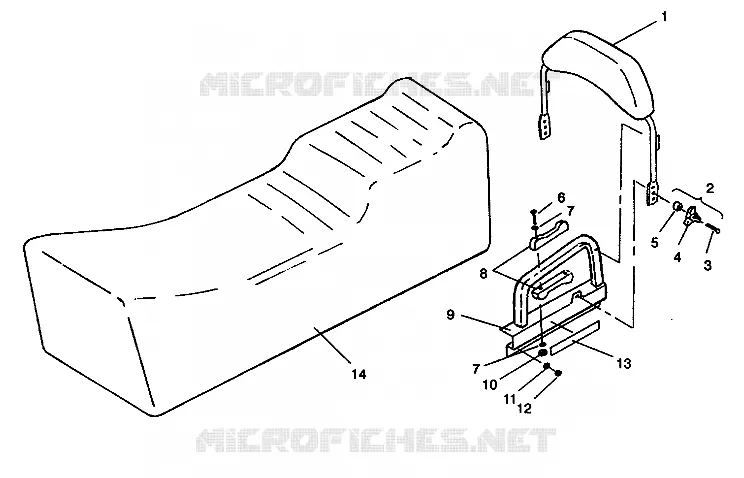

BACKREST 500 EFI SKS E942574 (49274127410004)
1
1
2
3
4
5
6
7
7
8
9
9
9
9
10
11
12
13
14
1
1
2
3
4
5
6
7
7
8
9
9
9
9
10
11
12
13
14
1
BACKREST ASM. (Incl. 72) 650 SKS
2681356
$383,24 Unit Price incl. VAT
1
COVER BACKREST
2681265
Not Available
2
KNOB ASM BACKREST
2670130
Not Available
3
SCREW(10)
7515352
Not Available
4
KNOB BACKREST
5630386067
$47,24 Unit Price incl. VAT
5
SPACER
5431285
Not Available
6
SCREW-#10-24X1.5 TRX/PN MC-Y
7510504
$10,49 Unit Price incl. VAT
7
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
8
GRIP HAND Substituted by 5433383
5431015
Not Available
9
BAR GRAB LH BLK.
1011729067
Not Available
9
BAR GRAB RH BLK.
1011730067
Not Available
10
NUT LOCK(10) Substituted by 7541925
7541929
7541925
$1,56 Unit Price incl. VAT
11
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
12
NUT NYLOK(10)
7542327
$9,44 Unit Price incl. VAT
13
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
14
SEAT/TANK CUSH (2-UP)
2681659
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
