1
Engine displacement
1000
2
Year
2019
3
Trim
RZR 1000 60 INCH EU / TRACTOR / ZUG
4
Parts Catalog

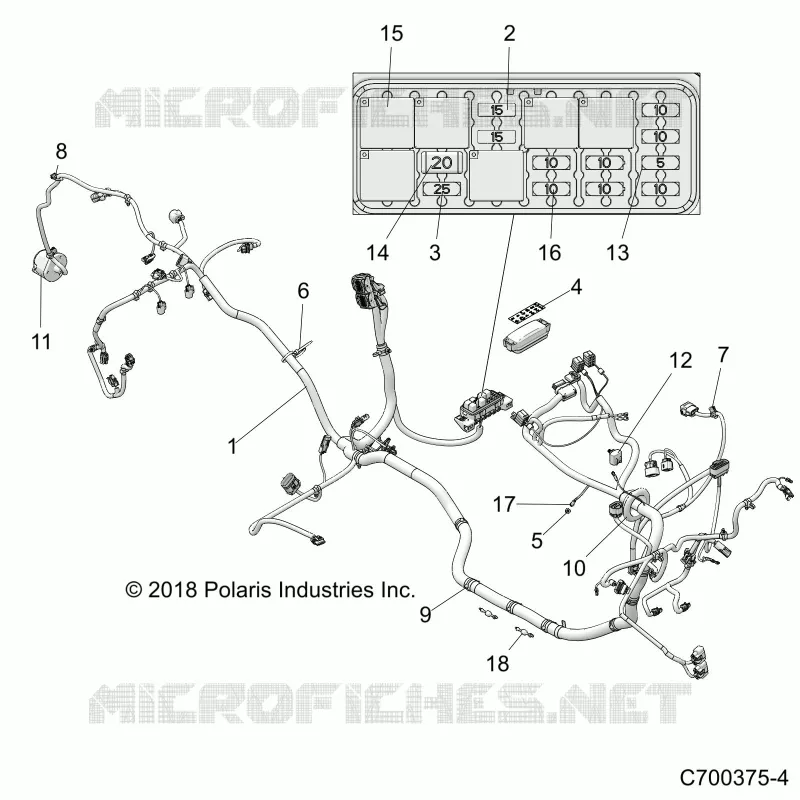

WIRE HARNESS
5
Parts Diagram
Parts Catalog
ELECTRICAL, INSTRUMENTS & CONTROLS
by
DIPSTICK & OIL FILTER
WIRE HARNESS
1
2
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
HARNESS-CHASSIS RZR 1000 PS TR [INCL. 2-17]
2414579
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
LABEL-FUSE BOX TR
7186386
Not Available
5
CLIP - ROUTING DIN BOX (R MODELS)
7082020
$10,49 Unit Price incl. VAT
6
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
7
CLIP EDGE HARNESS
7081890
$19,94 Unit Price incl. VAT
8
CLIP-EDGE 1-3MM 6-45MM SERT.
7081808
$10,49 Unit Price incl. VAT
9
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
10
GROMMET - 65 MM BLK
5813954
$13,64 Unit Price incl. VAT
11
CONNECTOR-7-WAY EURO TRAILER
4012558
Not Available
12
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
13
FUSE-5A MINI BLADE
4011652
$20,99 Unit Price incl. VAT
14
BREAKER-CIRCUIT 20 AMP
4011372
$83,99 Unit Price incl. VAT
15
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
16
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
17
LED - PANEL MNT 12V BLUE (R MODELS)
2413217
$99,74 Unit Price incl. VAT
18
DIODE - 6 AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
