1
Engine displacement
1000
2
Year
2019
3
Trim
RZR 1000 60 INCH EU / TRACTOR / ZUG
4
Parts Catalog

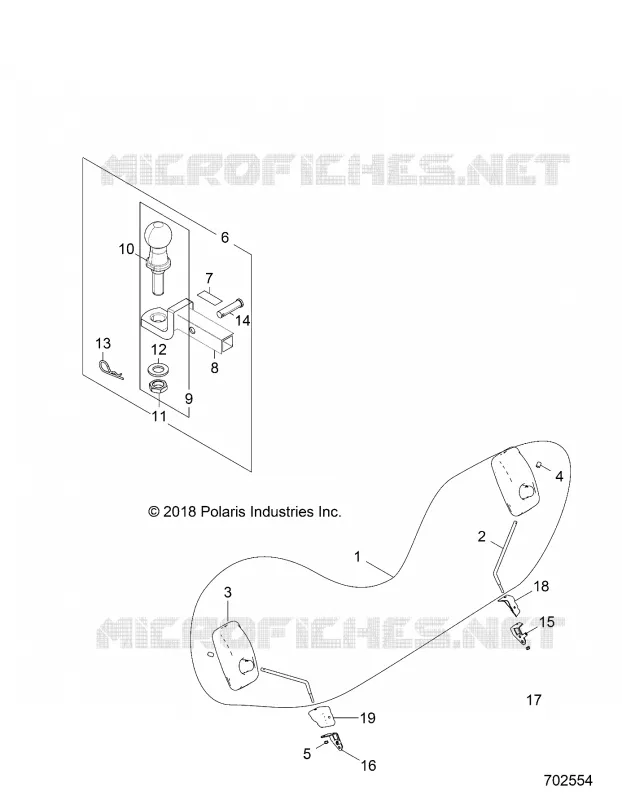

MIRRORS, HITCH
5
Parts Diagram
Parts Catalog
HOOD & FRONT BODY WORK
by
BRAKE LINES AND MASTER CYLINDER
MIRRORS, HITCH
12
13
14
15
16
17
18
19
1
ASM-MIRROR SET TRACTOR [INCL. 1-4]
2636258
Not Available
2
MIRROR ARM M.BLK
5340138458
Not Available
3
MIRROR CERT R46 TR [S99CR]
5453752
Not Available
4
PLUG-MIRROR ARM [S99CR]
5453815
Not Available
5
NUT-HEX M8X1.25 NYLOCK-SS [S99CR]
7546804
$2,09 Unit Price incl. VAT
6
HITCH-BALL REAR TRC/ZUG R55 [TO 8/17/2020]
2881665
Not Available
7
DECAL-HITCH ATV CERTIFD REG55
7184183
Not Available
8
WELD-HITCH DRAWBAR M.BLK
1022369458
Not Available
9
K-BALL REAR TRC/ZUG R55
2882047
Not Available
10
HITCH-BALL REG 55 ATV TRC/ZUG
5910571
Not Available
11
NUT-HEX M20X1.5X10
7547019
$41,99 Unit Price incl. VAT
12
WASHER-3/4IN HARDENED
7556311
$6,29 Unit Price incl. VAT
13
CLIP-HITCHPIN .148X3 1/16
7661067
$4,19 Unit Price incl. VAT
14
PIN CLEVIS BOX LIFT 2#
7662193
$52,49 Unit Price incl. VAT
15
BRKT-MIRROR MOUNT LH BLK
5266839458
Not Available
16
BRKT-MIRROR MOUNT RH BLK
5266840458
Not Available
17
SPACER-25X8 BLK [S99CR]
5341407458
Not Available
18
COVER MIRROR BRACKET LH BLK
5454670070
Not Available
19
COVER MIRROR BRACKET RH BLK
5454671070
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
