1
Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN TOURING 500 HO INTL - A11DH50FX
4
Parts Catalog
FRONT BUMPER AND MOUNTING
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNAL
by
CABIN SIDE PANELS

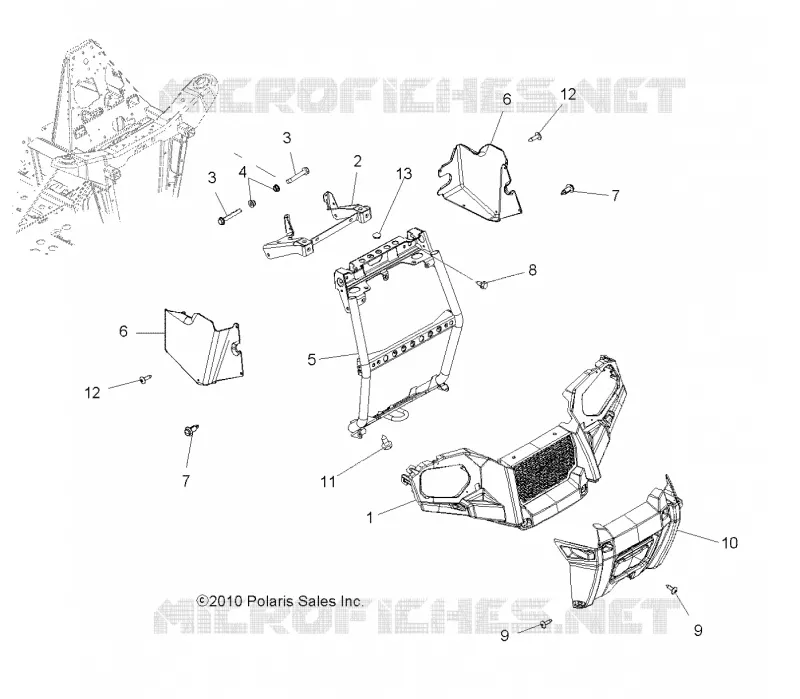

FRONT BUMPER AND MOUNTING
1
2
3
3
4
5
6
6
6
6
7
7
8
9
9
10
11
12
12
13
1
1
2
3
4
5
6
7
8
9
10
11
1
BUMPER FRONT FASCIA BLACK
5438559070
$314,99 Unit Price incl. VAT
2
Bracket Radiator Upper Black
5254310329
$125,99 Unit Price incl. VAT
3
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
4
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
5
Frame Bumper Black
1017743067
$1 165,49 Unit Price incl. VAT
6
Shield Side Radiator LH
5438689
$52,49 Unit Price incl. VAT
6
Shield Side Radiator RH
5438690
$52,49 Unit Price incl. VAT
7
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
8
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
9
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
10
Cover Fang Front Black
5438841070
Not Available
11
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
12
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
13
Plug Hole
5411009
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
