1
Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN TOURING 500 HO INTL - A11DH50FX
4
Parts Catalog

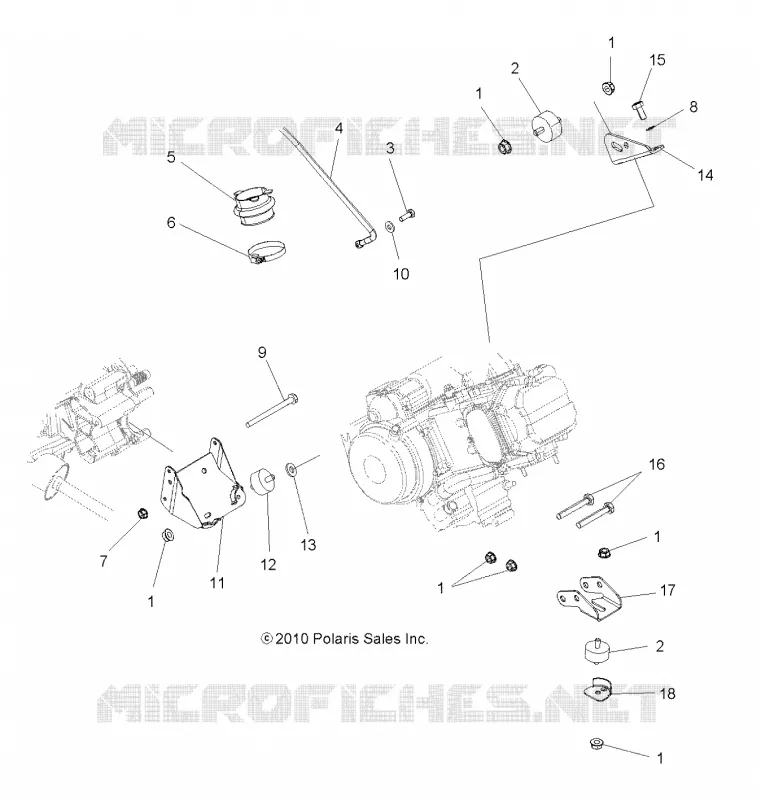

ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, FUEL PUMP
by
OIL FILTER
ENGINE, MOUNTING
1
1
1
1
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
2
ISOLATOR
3022071
3024012
$83,99 Unit Price incl. VAT
3
ASM. BOLT AND WASHER
3082038
$7,34 Unit Price incl. VAT
4
CABLE-BLK(FRAME/ENGINE)
4011546
$27,29 Unit Price incl. VAT
5
Boot Clutch Intake (If built after 8/04/03)
5412487
Not Available
6
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
7
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
8
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
9
SCR-5/16-18X7.5 HXCP GR Y
7518648
$13,64 Unit Price incl. VAT
10
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
11
Mount Rear Black
1015648329
$79,47 Unit Price incl. VAT
12
ISOLATOR
3022076
Not Available
13
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
14
Mount Engine Top
5241453
Not Available
15
Bolt
7512315
$9,44 Unit Price incl. VAT
16
Screw
7518415
$9,44 Unit Price incl. VAT
17
Mount Engine Front
5250326
$68,24 Unit Price incl. VAT
18
Bracket Torque Stop
5245043
$31,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
