1
Engine displacement
1000
2
Year
2023
3
Trim
SPORTSMAN XP 1000 55" EU TRACTOR / ZUG
4
Parts Catalog
BRAKES, REAR CALIPER
5
Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
BRAKES, VALVE SYSTEM

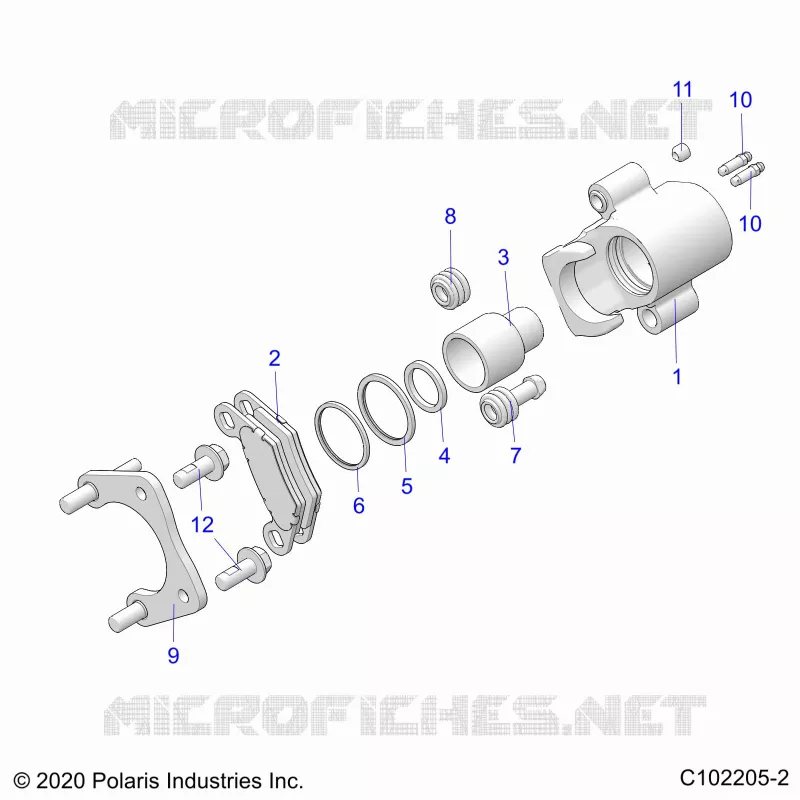

BRAKES, REAR CALIPER
1
1
2
3
4
5
6
7
8
9
10
10
11
12
1
ASM-CALIPER DUAL INPUT RH INTL [INCL. 1-12]
1913692
Not Available
1
ASM-CALIPER DUAL INPUT LH INTL [INCL. 1-12]
1913691
Not Available
2
KIT BRAKE PAD [INCL. 2 PADS]
2204088
$49,13 Unit Price incl. VAT
3
PISTON BRAKE STEP
5136698
$83,99 Unit Price incl. VAT
4
SQUARE RING-MOLDED (.134)
5410766
$20,99 Unit Price incl. VAT
5
SEAL-CALIPER INNER 1.50#
5412010
$13,64 Unit Price incl. VAT
6
SEAL-CALIPER OUTER 1.50#
5412011
$13,64 Unit Price incl. VAT
7
BOOT-PIN BUSHING
5412505
$6,29 Unit Price incl. VAT
8
BOOT-PIN SEAL
5412506
$6,29 Unit Price incl. VAT
9
ASM-CALIPER MOUNT
1913693
Not Available
10
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
11
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
12
SCR-HXFL-M10X1.25X25 8.8 Z NY
7518760
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
