1
Engine displacement
1000
2
Year
2023
3
Trim
SPORTSMAN XP 1000 55" EU TRACTOR / ZUG
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT SHOCK MOUNTING
by
REAR SUSPENSION HUB AND BEARING CARRIER

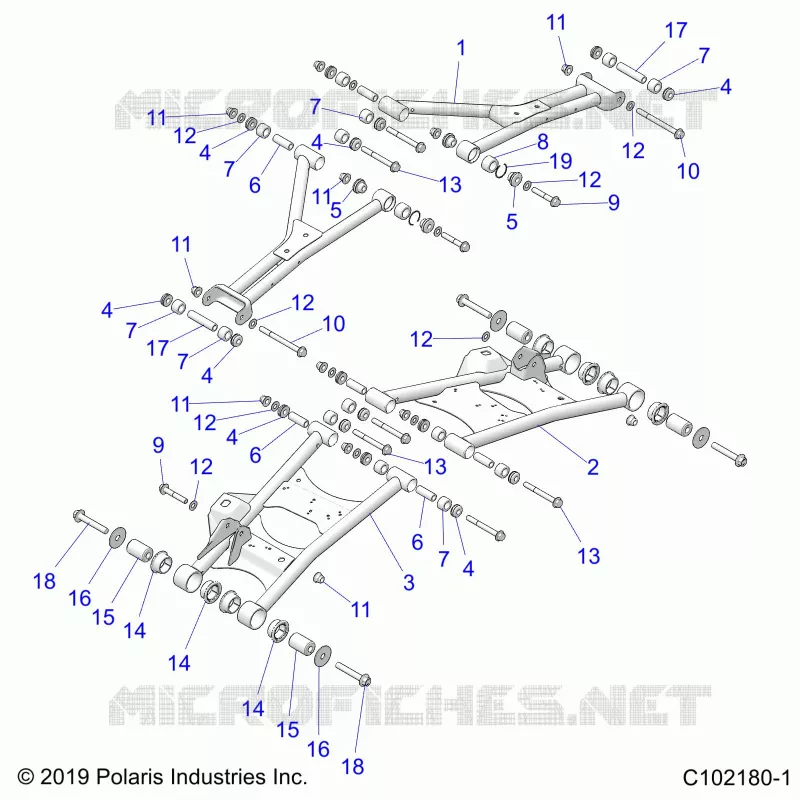

REAR SUSPENSION
1
2
3
4
4
4
4
4
4
4
5
5
6
6
6
7
7
7
7
7
7
8
9
9
10
10
11
11
11
11
11
11
12
12
12
12
12
12
12
13
13
13
14
14
14
15
15
16
16
17
17
18
18
19
1
WELD-UCA REAR 55# LIME
1023393630
$262,49 Unit Price incl. VAT
2
WELD-LCA REAR 55# LH LIME
1025643630
Not Available
3
WELD-LCA REAR 55#.RH LIME
1025644630
Not Available
4
ASM-PIVOT CAP SEALED M10
1543611
$10,49 Unit Price incl. VAT
5
ASM-PIVOT CAP SEALED M10
1543922
$19,94 Unit Price incl. VAT
6
SHAFT-PIVOT SHORT M10 43MM
5141292
$8,39 Unit Price incl. VAT
7
BUSHING-STANDARD SUSP M10
5452233
$5,24 Unit Price incl. VAT
8
BUSHING-STANDARD SUSP M12
5452271
$6,29 Unit Price incl. VAT
9
SCR-HXFL-M10X1.25X60 10.9 ZOD
7519306
$10,49 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X115 10.9 ZOD
7519365
$25,19 Unit Price incl. VAT
11
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
12
WASHER
7556153
$3,66 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X90 10.9 ZOD
7521024
$7,34 Unit Price incl. VAT
14
BUSHING CONTROL LOWER BLACK
5438902
$8,39 Unit Price incl. VAT
15
BUSHING-BRNG CARRIER PM 12MM
5634262
$16,79 Unit Price incl. VAT
16
WASHER-13.00X45.0X2.5 ZPC
7557177
$9,44 Unit Price incl. VAT
17
SHAFT-PIVOT SHORT M10
5139990
$10,49 Unit Price incl. VAT
18
SCR-HXFL-M12X1.5X75 10.9 ZOD
7521073
$7,34 Unit Price incl. VAT
19
30MM SPIRAL RING STEEL
7710869
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
