1
Engine displacement
500
2
Year
2002
3
Trim
500 CLASSIC TOURING
4
Parts Catalog
SEAT GAS TANK
5

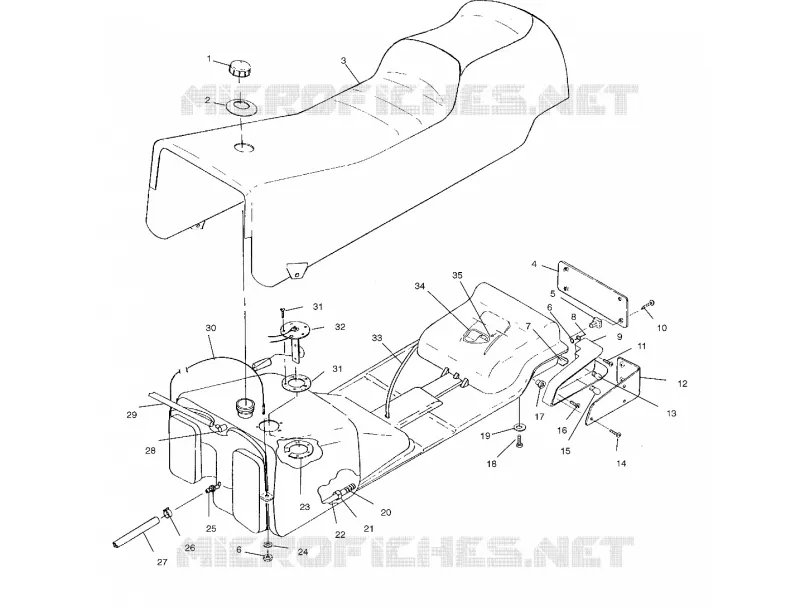

Parts Diagram
Parts Catalog
TUNNEL
by
BACKREST
SEAT GAS TANK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
1
2
3
3
4
5
6
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
1
GASKET GAS CAP
5810513
$15,74 Unit Price incl. VAT
1
CAP FUELTANK W/GASKET
2511226
Not Available
2
GROMMET FUELTANK
5410842
Not Available
3
ASM-SEAT TOUR (Incl. 3 4-17 20-22 25 28)
2682747
Not Available
3
ASM-SEAT COVER TOUR
2682748
Not Available
4
REFLECTOR CTR SEAT
5432008
Not Available
5
NUT(10)
7546908
$4,71 Unit Price incl. VAT
6
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
7
DESC NOT_AVAILABLE
1012838067
Not Available
8
RIVET-POP 3/16(.376-.500)(50)
7661046
$7,34 Unit Price incl. VAT
9
HOUSING LH LENS
5432002
Not Available
9
HOUSING RH LENS
5432003
Not Available
10
SCREW(10)
7511840
Not Available
11
SCREW SELF-TAP(10)
7522004
Not Available
12
LENS RH
5432032
$83,99 Unit Price incl. VAT
12
LENS LH
5432031
Not Available
13
BULB BRAKELIGHT
4030045
Not Available
14
SCREW
7512054
$4,19 Unit Price incl. VAT
15
BULB T/L.
4032084
Not Available
16
SCREW(10)
7511954
Not Available
17
NUT WELL(10)
7541901
$11,54 Unit Price incl. VAT
18
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
19
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
20
PICK-UP W/FILTER FUEL
7052243
7052301
$26,24 Unit Price incl. VAT
21
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
22
DESC NOT_AVAILABLE
83500191525
Not Available
23
FLANGE-FUEL TANK MOUNTING
5244067
Not Available
24
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
25
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
26
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
27
TUBING-ETHER ERETHNE 600CM SVC Substituted by 8350018-160
8350018600
8450117-250
$99,74 Unit Price incl. VAT
28
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
29
LINE FUEL [BULK SVC]
8450061600
$115,49 Unit Price incl. VAT
30
CABLE TANK RETENTION
7080559
Not Available
31
HDWE.PKG SEND.UNIT
2410012
Not Available
32
SENDER FUEL-LEVEL W/GASKET
3280227
Not Available
33
HARNESS T/L (TOUR)
2460524
$93,54 Unit Price incl. VAT
34
RETAINER-CLIP TOOL POUCH TOUR
5243593
Not Available
35
RIVET
7621467
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
