1
Engine displacement
500
2
Year
2002
3
Trim
500 CLASSIC TOURING
4
Parts Catalog

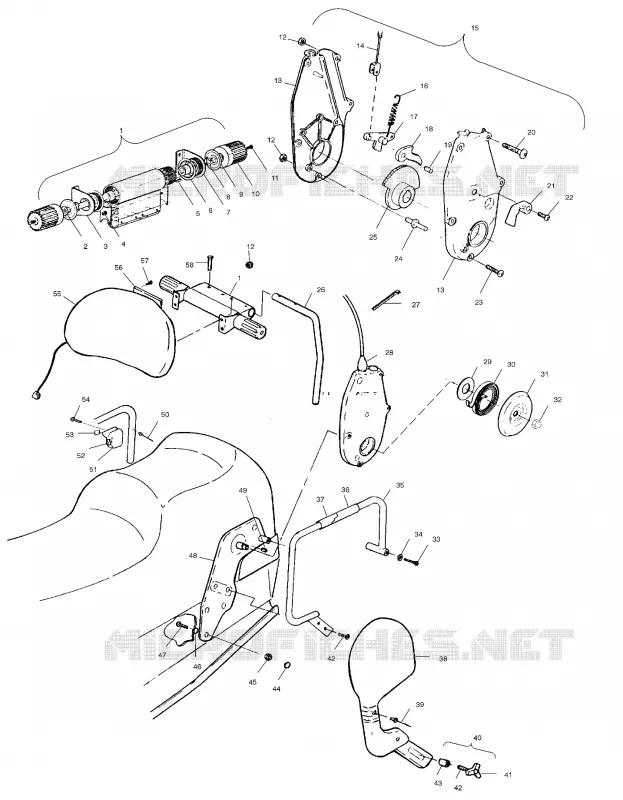

BACKREST
5
Parts Diagram
Parts Catalog
SEAT GAS TANK
by
HOOD
BACKREST
1
2
3
4
5
6
7
8
9
10
11
12
1
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
13
13
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
38
39
40
41
42
42
43
44
45
46
47
48
48
49
50
51
52
53
54
55
55
56
56
57
58
1
ADJ.ASM B#REST CUSHION (Incl. 2-7 30 56)
1012534
Not Available
2
WASHER WAVE(10)
7571635
$7,34 Unit Price incl. VAT
3
BRKT MOUNTING
1012535
$59,42 Unit Price incl. VAT
4
SCREW
7511866
$9,44 Unit Price incl. VAT
5
KEY SQUARE(10)
7721118
$6,29 Unit Price incl. VAT
6
SEAL BACKREST
5432113
Not Available
7
ROTOR (Set)
5131207
$26,45 Unit Price incl. VAT
8
RING-RETAINING #E# EXT. .500
7710901
$15,74 Unit Price incl. VAT
9
WASHER (10)
7571634
$4,19 Unit Price incl. VAT
10
KNOB ADJ.
5432112
Not Available
11
SCREW (10)
7512087
$3,14 Unit Price incl. VAT
12
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
13
HSG LH (ADJ. B#REST)
5131211
Not Available
13
HSG RH (ADJ.B#REST)
5131212
$99,95 Unit Price incl. VAT
14
CABLE ASM ACTUATOR
7080582
$139,64 Unit Price incl. VAT
15
ASM-BACKREST ADJUSTER (Incl. 11-24)
1013409
$410,54 Unit Price incl. VAT
16
SPRING LOCKING
7041411
$41,04 Unit Price incl. VAT
17
ASM-LOCKING PAWL RH PM (Incl. Pin & Retaining Ring)
1013411
$79,47 Unit Price incl. VAT
17
ASM-LOCKING PAWL MASTER LH PM (Incl. Pin & Retaining Ring)
1013410
Not Available
18
SECTOR-ENGAGEMENT PM
5245042
Not Available
19
PIN PIVOT
5020806
Not Available
20
BOLT (10)
7515171
Not Available
21
LEVER-LOCKING BLK
5631126067
Not Available
22
SCREW (10)
7516915
Not Available
23
BOLT
7515170
$4,19 Unit Price incl. VAT
24
STUD-LIMITER
5020822
$106,56 Unit Price incl. VAT
25
GEAR-STATIONARY PM
5245039
$105,51 Unit Price incl. VAT
26
TUBE B#REST MT BLK
5224761067
$47,66 Unit Price incl. VAT
27
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
28
COVER CABLE BLK
5432259
Not Available
29
WASHER THRUST(10)
7555926
$3,66 Unit Price incl. VAT
30
SPRING TORSION PRELOAD
7041412
Not Available
31
COVER SPRING 1/2# ID BLK
5241935067
$7,97 Unit Price incl. VAT
32
NUT (10)
7547015
$11,01 Unit Price incl. VAT
33
SCREW
7512307
$7,34 Unit Price incl. VAT
34
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
35
HANDLE GRAB RH BLACK
1012658067
$85,88 Unit Price incl. VAT
35
HANDLE GRAB LH BLACK
1012657067
$93,54 Unit Price incl. VAT
36
GRIP HEATED PASS.
2460721
$146,46 Unit Price incl. VAT
37
TAPE FOAM .120X2.75X4 3M 4959
5811725
Not Available
38
DEFLECTOR AIR LH
5432078
$42,30 Unit Price incl. VAT
38
DEFLECTOR AIR RH
5432079
$43,56 Unit Price incl. VAT
39
RIVET (50)
7621341
Not Available
40
KNOB GRAB HANDLE (Incl. 50-52)
1012385
Not Available
41
KNOB BACKREST
5630386067
$47,24 Unit Price incl. VAT
42
BOLT(10) Substituted by 7515339
7515328
7515339
$9,44 Unit Price incl. VAT
43
SPACER ADJ.KNOB
5432123
$9,33 Unit Price incl. VAT
44
CAPLUG 3/4#(10)
7080592
Not Available
45
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
46
NUT-5/16-PAL-Y
7547030
$9,44 Unit Price incl. VAT
47
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
48
MAINFRAME LH BLK
1012539067
Not Available
48
MAINFRAME RH BLK
1012540067
Not Available
49
KEY HI PRO
7721125
$7,34 Unit Price incl. VAT
50
RIVET(50)
7621229
Not Available
51
HOUSING-SWITCH
5432120
$35,69 Unit Price incl. VAT
52
HARNESS PASS.GRP.HTR.SW.
2460537
$106,56 Unit Price incl. VAT
53
DECAL HIGH/LOW/OFF
7075418
Not Available
54
SCR-8X1/2 TRX PN HD TAP-Y
7527815
$6,29 Unit Price incl. VAT
55
Cushion w/Light Backrest
2682757
Not Available
55
Cover Backrest
2682758
$225,74 Unit Price incl. VAT
56
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
56
TAILLIGHT ASM B#REST
2432040
Not Available
57
SCREW
7512054
$4,19 Unit Price incl. VAT
58
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
