Parts Catalog
HOOD RXL 0976768 (4938523852A011)
5
Parts Diagram
Parts Catalog
DECALS RXL 0976768 (4938523852A010)
by
STEERING

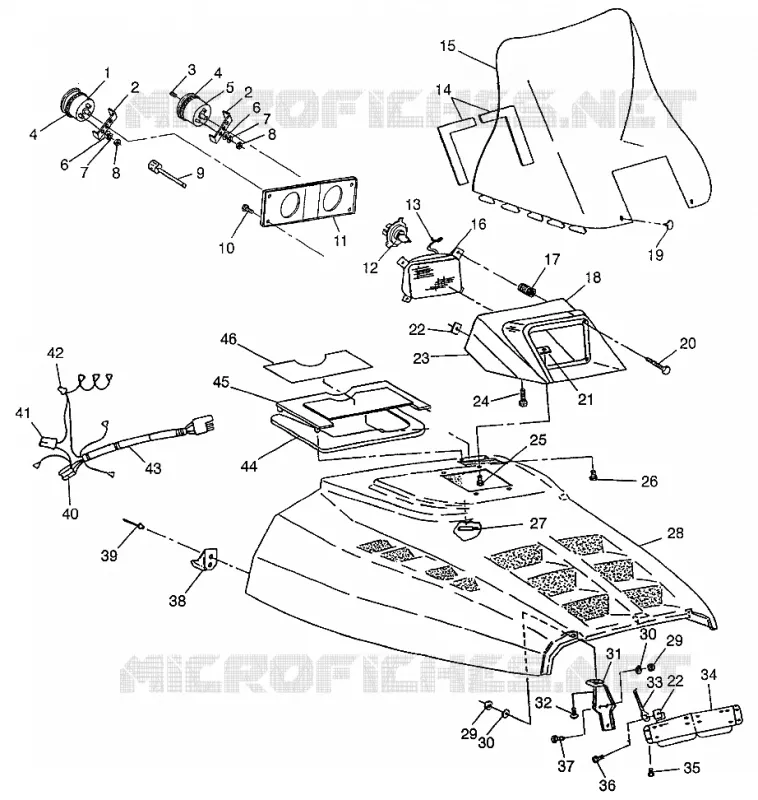

HOOD RXL 0976768 (4938523852A011)
1
1
2
2
3
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
TACH ASM 3P (5 IN.) (Incl. 2 4 6-8)
3280249
Not Available
1
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
2
BRKT TACH/SPEEDO 5#
3280210
$52,49 Unit Price incl. VAT
3
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
4
CUSHION TACH/SPEEDO RUBBER
3280209
$7,34 Unit Price incl. VAT
5
SPEEDO BACKLIT 5IN 120MPH (Incl. 2 6-8)
3280254
Not Available
6
WASHER FLAT (10)
3280157
$4,19 Unit Price incl. VAT
7
WASHER SPLIT LOCK
3280156
$1,04 Unit Price incl. VAT
8
NUT
3280158
Not Available
9
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
10
SCREW SCKT.HD.CAP(10)
7512008
Not Available
11
BEZEL INST 5IN.GAUGE
5432355
Not Available
12
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
13
RETAINER H/L BULB
4032063
Not Available
14
PAD W/S RH BLACK
5810438
$2,72 Unit Price incl. VAT
14
PAD W/S LH BLACK
5810437
Not Available
15
WINDSHIELD SMOKE STD(LIQ)
5431144
$182,69 Unit Price incl. VAT
16
HEADLIGHT ASM.
4032040
Not Available
17
SPRING-ADJ
4032002
Not Available
18
HSG INSTR TOP BLK
5432349070
Not Available
19
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
20
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
21
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
22
NUT SPEED(10)
7670056
Not Available
23
HSG INST.BOTT.BLK.
5430922070
Not Available
24
SCREW(10)
7512009
Not Available
25
SCREW
7512283
$7,34 Unit Price incl. VAT
26
SCREW(10)
7511840
Not Available
27
RETAINER WINDSHIELD
5410970
$2,09 Unit Price incl. VAT
28
HOOD LIQ INDY SP INDIGO MT
2631751229
Not Available
29
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
30
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
31
HINGE ASM HD INDIGO MET
2635005229
Not Available
32
BOLT-CARRIAGE(10)
7512263
$7,34 Unit Price incl. VAT
33
CABLE HOOD RETAINER (650)
7080368
$19,94 Unit Price incl. VAT
34
PLATE RE-INF. (HD.)
5222105
$66,66 Unit Price incl. VAT
35
SCREW(10)
7511861
Not Available
36
BOLT
7511989
Not Available
37
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
38
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
39
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
40
HOUSING
4020115
Not Available
41
HOUSING
4020114
Not Available
42
HOUSING
4020052
Not Available
43
HARNESS HEADLIGHT
2460576
Not Available
44
SEAL INTAKE
5810597
Not Available
45
PANEL ASM INTAKE INDG.MET (Incl. 44)
2620095229
Not Available
46
DECAL WARN.#PK.BRAKE# (Incl. 46)
7075457
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
