1
Engine displacement
0
2
Year
1997
3
Trim
RXL - 0976768
4
Parts Catalog
SEAT GAS TANK RXL 0976768 (4938523852A007)
5
Parts Diagram
Parts Catalog
RECOIL STARTER RXL 0976768 (4938523852C014)
by
NOSEPAN RXL 0976768 (4938523852A008)

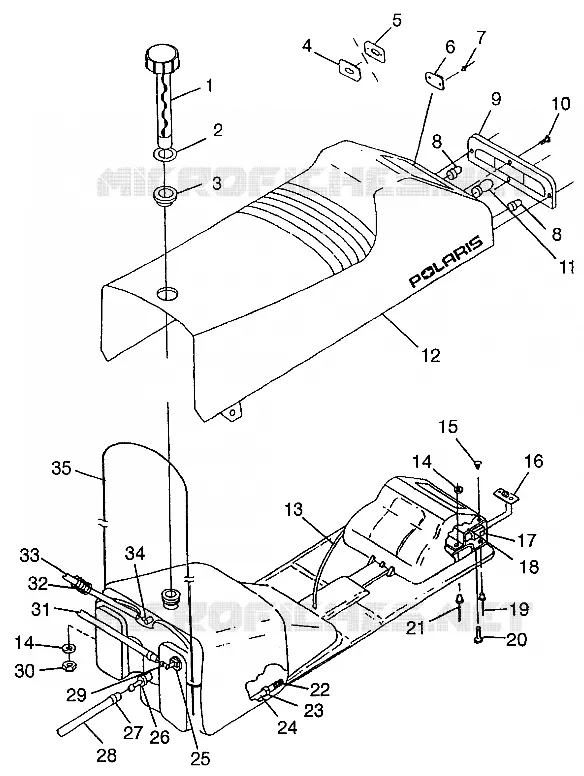

SEAT GAS TANK RXL 0976768 (4938523852A007)
1
2
3
4
5
6
7
8
8
9
10
11
12
12
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
CAP GAS W/GAUGE
2511248
$83,99 Unit Price incl. VAT
2
GASKET GAS CAP
5810513
$15,74 Unit Price incl. VAT
3
GROMMET FUELTANK
5410842
Not Available
4
GROMMET RELATCH 1# BOTT.(10)
7080550
Not Available
5
GROMMET RELATCH 1# TOP(10)
7080549
Not Available
6
TWISTLOCK RELATCH 1# W/HOLE(10)
7080548
Not Available
7
RIVET(50)
7621337
$2,09 Unit Price incl. VAT
8
BULB TAILLIGHT(10)
4030024
$9,44 Unit Price incl. VAT
9
LENS TAILLIGHT
5430423
Not Available
10
SCREW(10)
7511840
Not Available
11
BULB BRAKELIGHT
4030045
Not Available
12
COVER SEAT RXL
2682119
Not Available
12
SEAT ASM LONG RXL (Incl. 2 4-26 29 34)
2681993
Not Available
13
HARNESS TAILLIGHT
2460398
Not Available
14
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
15
CLIP DART (10)
7670097
Not Available
16
NUT RETAINER-WELD.(10)
7542147
$30,96 Unit Price incl. VAT
17
HOUSING TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Not Available
18
COVER T/L PROTECTOR
5431436
$34,32 Unit Price incl. VAT
19
RIVET(50)
7621301
Not Available
20
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
21
RIVET(50)
7621464
Not Available
22
PICKUP FUEL W/STRAINER
7052081
Not Available
23
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
24
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
25
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
26
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
27
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
28
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
29
FITTING TANK OUTLET(5/16)
7052059
Not Available
30
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
31
FUEL LINE 5 FT.
8450045153
8450123-153
$157,49 Unit Price incl. VAT
32
SPRING PROTECT.VENTHOSE
7041605
Not Available
33
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
34
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
35
CABLE TANK RETENTION
7080559
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
