1
Engine displacement
850
2
Year
2023
3
Trim
850 INDY XCR 128
4
Parts Catalog
SUSPENSION, RAIL BEAM LH/RH
5

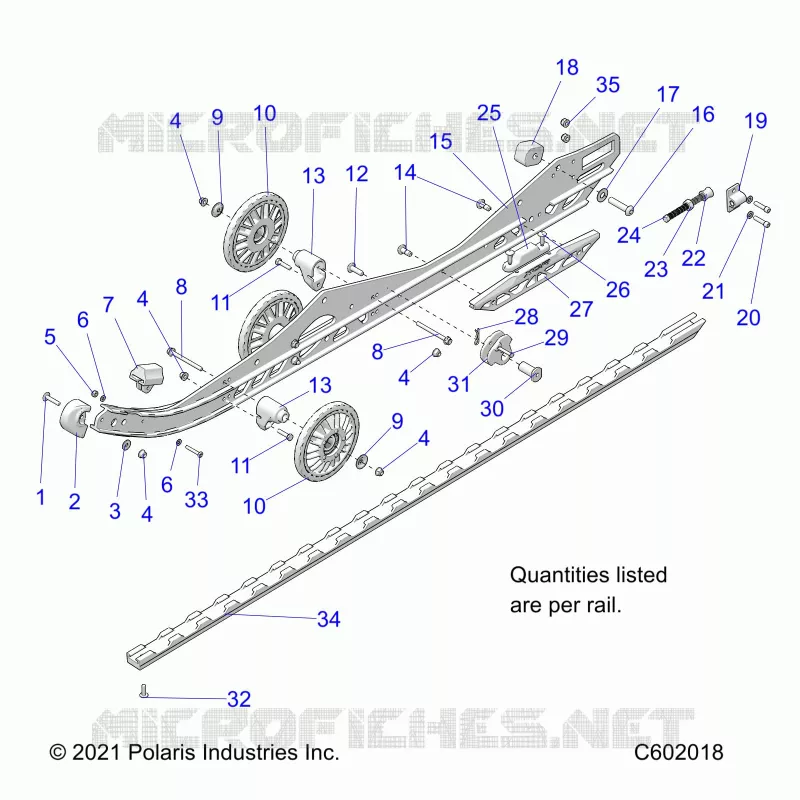

Parts Diagram
Parts Catalog
SUSPENSION, IFS SHOCKS MNTG.
by
REAR SUSPENSION
SUSPENSION, RAIL BEAM LH/RH
14
15
15
15
15
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
SCR-TXTH-M6X1.0X30 8.8 ZPB
7520133
$6,29 Unit Price incl. VAT
2
CAP RAIL TIP
5452441
$26,24 Unit Price incl. VAT
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
4
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
5
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
6
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
7
BUMPER JOUNCE FRONT
5522253
$16,79 Unit Price incl. VAT
8
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
7521331-70
$1,56 Unit Price incl. VAT
9
WASHER OFFSET
7556799
$6,29 Unit Price incl. VAT
10
BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]
3515142
$34,64 Unit Price incl. VAT
10
RING RETAINING
7710444
$15,74 Unit Price incl. VAT
10
ASM. WHEEL SPOKED 5.62
1590632
$66,66 Unit Price incl. VAT
11
SCR-HH-M6X1.0X25 8.8 ZPB
7517510
$9,44 Unit Price incl. VAT
12
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
13
BLOCK-WHEEL MOUNT
5633278
$47,24 Unit Price incl. VAT
14
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
$7,34 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC RH INDYRED [INCL. 19-21 35] [COLOR OPTION]
1544785293
$981,74 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC LH INDYRED [INCL. 19-21 35] [COLOR OPTION]
1544784293
$981,74 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC LH BLK [INCL. 19-21 35] [COLOR OPTION]
1544784067
$981,74 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC LH POLBLUE [INCL. 19-21 35] [COLOR OPTION]
1544784751
$981,74 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC LH RADGRN [INCL. 19-21 35] [COLOR OPTION]
1544784887
$929,24 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC RH BLK [INCL. 19-21 35] [COLOR OPTION]
1544785067
$981,74 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC RH RADGRN [INCL. 19-21 35] [COLOR OPTION]
1544785887
$929,24 Unit Price incl. VAT
15
ASM-RAIL 128 CC SVC RH POLBLUE [INCL. 19-21 35] [COLOR OPTION]
1544785751
$981,74 Unit Price incl. VAT
16
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
$10,49 Unit Price incl. VAT
17
WASHER
7556545
$6,29 Unit Price incl. VAT
18
BUMPER-PIVOT ALUM
5142728
$54,59 Unit Price incl. VAT
19
BLOCK IDLER BOLT ADJUSTABLE
5136570
$62,99 Unit Price incl. VAT
20
SCR-1/4-20X1 SOC CP-Y
7515102
$9,44 Unit Price incl. VAT
21
WASHER-.5X.262X.06(16 GA)-Y
7555827
$7,34 Unit Price incl. VAT
22
SPACER-IDLER ADJ ALUM
5141837
$13,64 Unit Price incl. VAT
23
NUT-HEX-M10X1.5 8 ZOD
7547707
$7,34 Unit Price incl. VAT
24
SCR-HX-M10X1.5X100 8.8 ZOD
7520083
$23,09 Unit Price incl. VAT
25
BUMPER
5432166
$9,44 Unit Price incl. VAT
26
SCR-1/4-20X3/4 TR/TX/TAP-Y
7515199
$2,09 Unit Price incl. VAT
27
PLATE-RAIL REINF CC BLK ANDZD
5144096
$152,24 Unit Price incl. VAT
28
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
29
PIN CLEVIS
7661123
$7,34 Unit Price incl. VAT
30
SHAFT SPRING ROLLER
5136687
$19,94 Unit Price incl. VAT
31
GUIDE SPRING SQUARE
5434334
$62,99 Unit Price incl. VAT
32
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$6,29 Unit Price incl. VAT
33
SCR-10-24X1.25TFM PN TRX TRI-Y
7512025
$9,44 Unit Price incl. VAT
34
SLIDER-129 CC BLK
5522321070
$104,99 Unit Price incl. VAT
35
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
