SUSPENSION, REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT TORQUE ARM
by
ELECTRICAL, IGNITION SYSTEM

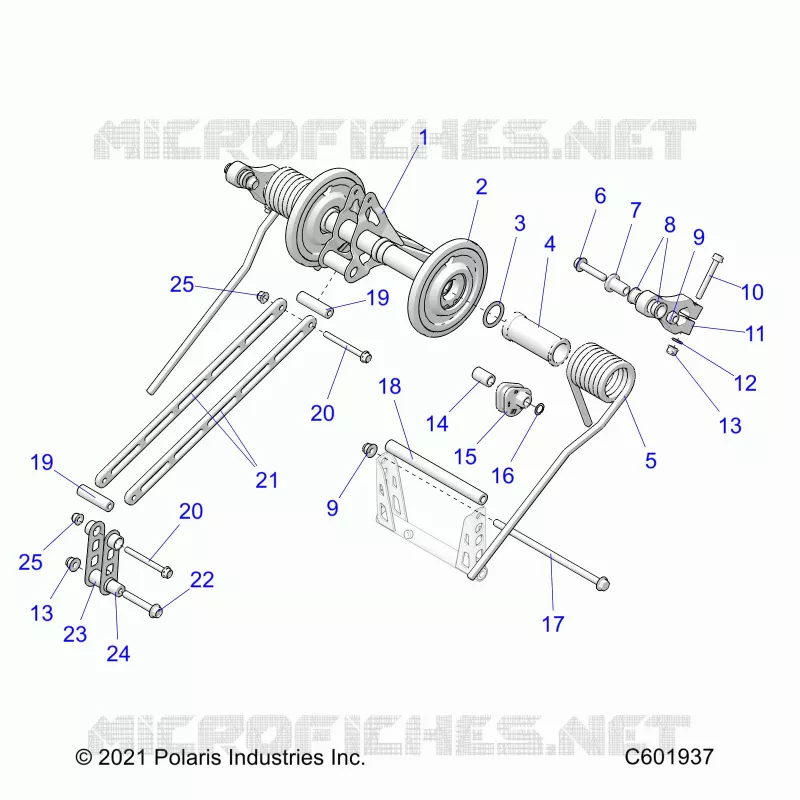

SUSPENSION, REAR TORQUE ARM
9
9
10
11
12
13
13
14
15
15
16
17
18
19
19
20
20
21
22
23
23
24
25
25
1
TORQUE ARM REAR E-COAT
1543906329
$377,99 Unit Price incl. VAT
2
ASM-WHEEL PLAIN 6.38 6007
1590001
$141,74 Unit Price incl. VAT
2
BEARING [1 PER]
3514445
1590001
$141,74 Unit Price incl. VAT
2
RING RETAINING [1 PER]
7710486
Not Available
3
WSHR-1.28X1.69X.075-Y
7555939
$7,34 Unit Price incl. VAT
4
SLEEVE-TORSION SPRING
5434989
$7,34 Unit Price incl. VAT
5
SPRING TOR .375S 70 13# RH EXTRA HD BLK [OPT]
7045210329
$220,49 Unit Price incl. VAT
5
SPRING-TOR .359S 80 11# LH BLK [OPT]
7045190329
$209,99 Unit Price incl. VAT
5
SPRING TOR .375S 70 13# LH EXTRA HD BLK [OPT]
7045209329
$220,49 Unit Price incl. VAT
5
SPRING TOR .375S 80 13# RH HD BLK [STD]
7045208329
$220,49 Unit Price incl. VAT
5
SPRING-TOR .359S 80 11# RH BLK [OPT]
7045191329
$209,99 Unit Price incl. VAT
5
SPRING TOR .375S 80 13# LH HD BLK [STD]
7045207329
$220,49 Unit Price incl. VAT
6
SCR-M10X1.5X50 8.8 HX/FL ZOD
7518971
$12,59 Unit Price incl. VAT
7
SHAFT-RTA MOUNT
5141400
$26,24 Unit Price incl. VAT
8
BUSHING-CRANK
5438876
$13,64 Unit Price incl. VAT
9
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
10
SCREW M8x65
7519212
$9,44 Unit Price incl. VAT
11
ASM-ARM 83.2 NARROW [INCL 11]
1544129
$73,49 Unit Price incl. VAT
12
WASHER FLAT
7556524
$1,56 Unit Price incl. VAT
13
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
14
SPACER-.520X.770X1.185 HDPE
5334285
$4,19 Unit Price incl. VAT
15
ROLLER-SPRING TRI-ADJ LH
5434589
$68,24 Unit Price incl. VAT
15
ROLLER-SPRING TRI-ADJ RH
5434590
$62,99 Unit Price incl. VAT
16
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
17
SCR-HXFL-M10X1.5X230 8.8 ZY3
7518472
$11,54 Unit Price incl. VAT
18
SHAFT-RTA LOWER
5142129
$47,24 Unit Price incl. VAT
19
BUSHING-PULL ROD
5142128
$15,74 Unit Price incl. VAT
20
SCR-HXFLG M8X1.25X90
7519154
$13,64 Unit Price incl. VAT
21
ROD-SHOCK HD MACH ANOD
5144133
$73,49 Unit Price incl. VAT
22
SCR-HXFL-M8X1.25X65 8.8 ZOD
7519971
7521332-65
$3,14 Unit Price incl. VAT
23
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
23
SHOCK PIVOT ARM ECOAT
1544017329
$68,24 Unit Price incl. VAT
24
BUSHING-SHOCK PIVOT ARM
5142127
$20,99 Unit Price incl. VAT
25
NUT-HEX-M8X1.25 8 ZOD NYL
7547480
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
