CARBURETOR (600 AND 600 LE) (4910941094049A)
5
Parts Diagram
Parts Catalog
CARBURETOR (TRAIL AND 400) (4910941094048A)
by
FUEL PUMP (TRAIL AND 400) (4910941094050A)

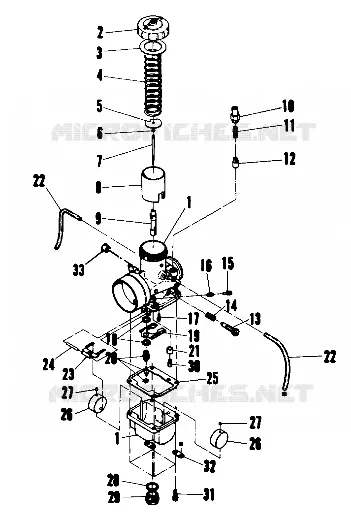

CARBURETOR (600 AND 600 LE) (4910941094049A)
1
CARB ASM. [No Longer Available] (Incl. 2-32)
3130377
Not Available
2
TOP (Incl. 3)
3130061
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE Substituted by 3130444
3130334
Not Available
5
PLATE THROTTLE
3130054
$13,64 Unit Price incl. VAT
6
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
7
NEEDLE JET (6F9-3)
3130378
Not Available
8
VALVE THROTTLE (3.0) (3.0)
3130352
Not Available
8
VALVE THROTTLE-3.5 Substituted by 3130380 (3.5)
3130304
Not Available
9
JET NEEDLE Q-2
3130165
Not Available
10
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
CARBURETOR
3130326
Not Available
13
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
14
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET PILOT #35 Substituted by 3130066
3130340
$18,89 Unit Price incl. VAT
18
WASHER(10)
3130047
$9,44 Unit Price incl. VAT
19
PLATE
3130243
Not Available
20
VALVE ASM NEEDLE Substituted by 3130643
3130046
$115,49 Unit Price incl. VAT
21
RING CARB
3130232
Not Available
22
HOSE Substituted by 3130241
3081868
Not Available
23
ARM FLOAT
3130048
Not Available
24
PIN FLOAT Substituted by 3130235
3130240
3130361
$18,89 Unit Price incl. VAT
25
GASKET FLOAT CHAMBER
3130236
$20,99 Unit Price incl. VAT
26
FLOAT ASM Substituted by 3130021
3080534
Not Available
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
O-RING
3130239
Not Available
29
SCREW GUIDE Substituted by 3130432
3130238
Not Available
30
JET MAIN HX.HD#260(10)
3130129
$15,74 Unit Price incl. VAT
31
SCREW
3130056
$6,29 Unit Price incl. VAT
32
PLATE
3130242
Not Available
33
CAP VACUUM FIT
3130379
$10,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
