CARBURETOR (TRAIL AND 400) (4910941094048A)
5
Parts Diagram
Parts Catalog
WATER PUMP (400) (4910941094043A)
by
CARBURETOR (600 AND 600 LE) (4910941094049A)

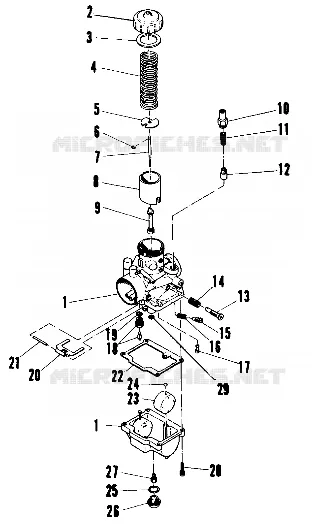

CARBURETOR (TRAIL AND 400) (4910941094048A)
-
CARB ASM. [No Longer Available] (Incl. 2-29) (400)
3130373
Not Available
1
CARB ASM. Substituted by 3130395 (Incl. 2-29)(TRAIL)
3130364
Not Available
2
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE
3130318
$47,24 Unit Price incl. VAT
5
PLATE THROTTLE Substituted by 3130027
3130216
3130027
$19,94 Unit Price incl. VAT
6
E RING(10) Substituted by 3130003
3130245
Not Available
7
JET NEEDLE
3130329
Not Available
7
JET NEEDLE (400)
3130374
Not Available
8
VALVE THROTTLE 3.0
3130372
$104,99 Unit Price incl. VAT
9
JET NEEDLE (P-6)
3130160
$73,49 Unit Price incl. VAT
9
NEEDLE JET (Q-2) (400)
3130376
Not Available
10
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
14
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
17
JET IDLER H30 Substituted by 3130065 (No. 30}
3130331
$18,89 Unit Price incl. VAT
18
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
19
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
20
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
21
PIN FLOAT Substituted by 3130235
3130240
3130361
$18,89 Unit Price incl. VAT
22
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
23
FLOAT ASM. Substituted by 3130430
3130032
Not Available
24
CAP
3130237
$8,39 Unit Price incl. VAT
25
O-RING
3130239
Not Available
26
BOLT BANJO
3130321
$41,99 Unit Price incl. VAT
27
JET MAIN HX.HD#210(10) (TRAIL)
3130124
$15,74 Unit Price incl. VAT
27
JET MAIN HX.HD#220(10)
3130125
$12,59 Unit Price incl. VAT
28
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
29
WASHER
3130014
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
