1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 - A09ZX85/8X ALL OPTIONS
4
Parts Catalog
SWITCHES, SENSORS, ECU AND CONTROL MODULES
5

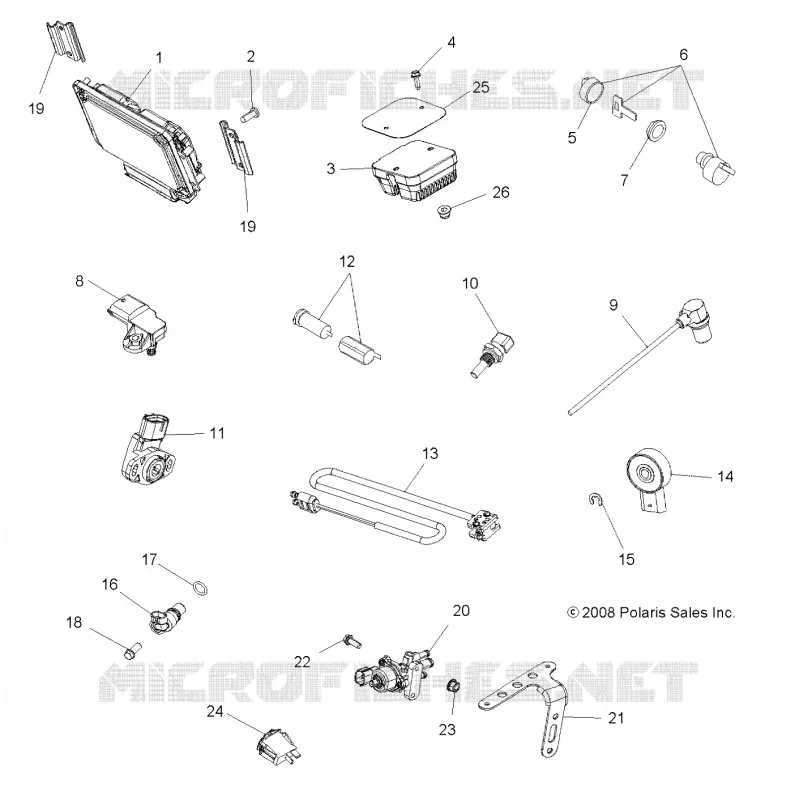

Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
TAIL LIGHTS
SWITCHES, SENSORS, ECU AND CONTROL MODULES
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
21
22
23
24
25
23
1
ECM
4012616
$1 018,49 Unit Price incl. VAT
2
SCR-#14X3/4 LG HI/LO/TAPER-M
7512095
$9,44 Unit Price incl. VAT
3
Regulator Voltage
4011636
Not Available
4
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
5
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
6
SWITCH KEY 3 POSITION [INCL. 23-25]
4012165
4083589
$202,64 Unit Price incl. VAT
7
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
8
Sensor T-Map
2411082
2411528
$178,49 Unit Price incl. VAT
8
Screw
7518541
$19,94 Unit Price incl. VAT
9
Sensor Engine Speed
2410857
2411589
$141,74 Unit Price incl. VAT
10
SENSOR-THERMISTER
4010644
$141,74 Unit Price incl. VAT
11
SENSOR THROTTLE POSITION
3131705
$367,49 Unit Price incl. VAT
12
RECEPTACLE-POD MNT 12 VOLT
4010638
$52,49 Unit Price incl. VAT
13
KIT BRAKE LIGHT SWITCH
2202794
$131,24 Unit Price incl. VAT
14
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
16
SENSOR SPEED
4012167
4082135
$204,74 Unit Price incl. VAT
17
O-RING
3234302
$13,64 Unit Price incl. VAT
18
SCREW. TORX PAN HEAD
3234329
3234898
$17,84 Unit Price incl. VAT
19
Bracket Mount ECU
5251244
$1,98 Unit Price incl. VAT
20
Valve IAC
4011638
$209,99 Unit Price incl. VAT
20
KIT HARNESS IAC
2878507
$272,99 Unit Price incl. VAT
21
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
21
Bracket IAC
5252132
$5,66 Unit Price incl. VAT
22
SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
$7,34 Unit Price incl. VAT
23
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
24
SWITCH WORK LIGHT ON/OFF [E57FS][S57FS]
4011074
$73,49 Unit Price incl. VAT
25
COVER VOLTAGE REGULATOR
5253294
$20,99 Unit Price incl. VAT
26
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
