1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP EPS 850 - A09ZX85/8X ALL OPTIONS
4
Parts Catalog

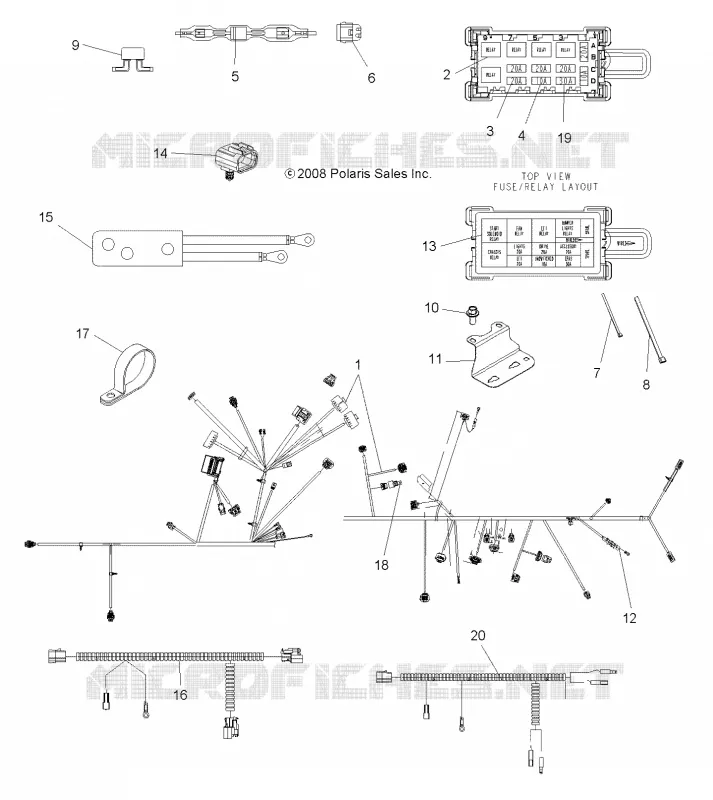

WIRE HARNESS
5
Parts Diagram
Parts Catalog
GAUGES INDICATORS
by
HEADLIGHTS
WIRE HARNESS
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
1
Kit Relay EPS Repair [Incl. 4010725 Wire Harness Repair Connectors Shrink Tubes Instructions]
2204853
$152,24 Unit Price incl. VAT
1
KIT HARNESS TPS
2878498
$220,49 Unit Price incl. VAT
1
Kit Harness Handlebar Switch
2877772
Not Available
1
Kit Harness Handlebar Switch
2877771
$257,24 Unit Price incl. VAT
1
Kit Harness Handlebar Switch
2877773
$262,49 Unit Price incl. VAT
1
RELAY SPDT SEALED [FLA]
4010725
$89,24 Unit Price incl. VAT
1
Harness Main Twin [Incl. 2-6 9 12-14 18 19 All Kits]
2411327
$1 291,49 Unit Price incl. VAT
2
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
3
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
4
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
5
DIODE - 6 AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
6
Kit Harness Resistor Module
2204890
$257,24 Unit Price incl. VAT
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
9
BREAKER-CIRCUIT 20 AMP SEALED
2410881
$141,74 Unit Price incl. VAT
10
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
11
Bracket Mount Fuse Block
5250452
$22,46 Unit Price incl. VAT
12
KIT FUSIBLE LINK .8 MM
2202607
$73,49 Unit Price incl. VAT
12
LINK-FUSIBLE 2.0mm² X 110mm MAX LONG (GY)
2203632
$73,49 Unit Price incl. VAT
13
Label Fuse Box
7175806
Not Available
14
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
15
Harness Winch Prewire
2411186
Not Available
16
HARNESS ACCY WORKLIGHTS
2411236
$272,99 Unit Price incl. VAT
17
Clamp Hose
7080807
$17,84 Unit Price incl. VAT
18
RELAY SPST SEALED
4011407
$104,99 Unit Price incl. VAT
19
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
20
Harness Accessory BG Light [AR][8XAG]
2411235
$66,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
