1
Engine displacement
500
2
Year
1992
3
Trim
500 - 0920764
4
Parts Catalog

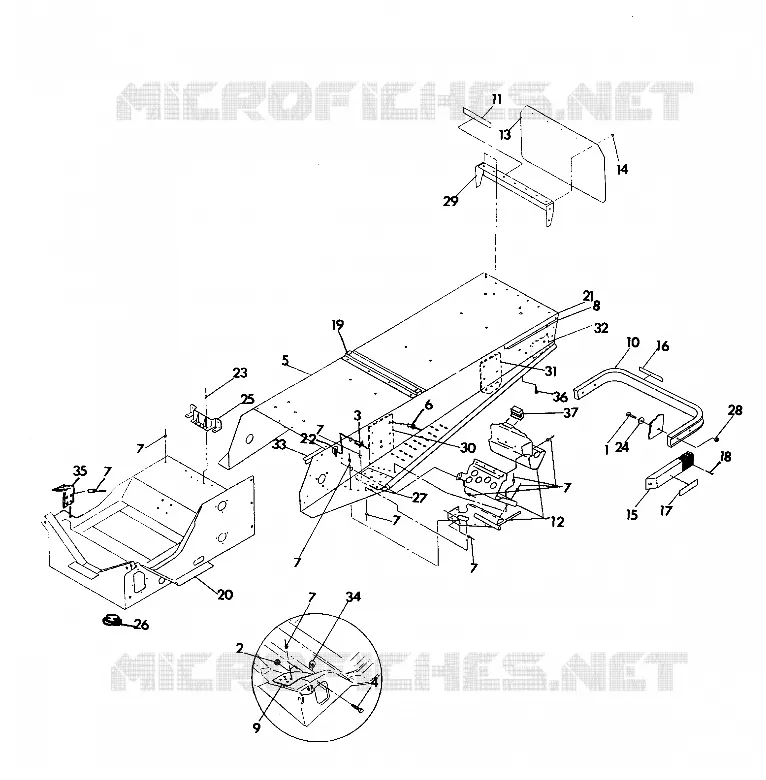

TUNNEL ASSEMBLY 500 (4921252125001A)
5
Parts Diagram
Parts Catalog
by
TUNNEL ASSEMBLY 500 CLASSIC (4921252125003A)
TUNNEL ASSEMBLY 500 (4921252125001A)
1
2
3
5
6
7
7
7
7
7
7
7
7
8
8
8
8
9
9
9
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27
27
28
29
30
31
31
31
31
32
33
34
35
36
37
1
2
3
5
6
7
7
7
7
7
7
7
7
8
8
8
8
9
9
9
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27
27
28
29
30
31
31
31
31
32
33
34
35
36
37
1
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
2
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
3
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
5
TUNNEL ASM. Substituted by 1011808 (Incl. 46)
1011789
Not Available
6
RIVET SEMI-TUBE (50)
7661812
Not Available
7
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
8
DECAL LH TUNNEL#500SKS# [No Longer Available]
7073183
Not Available
8
DECAL RH TUNNEL#500SKS# [No Longer Available]
7073184
Not Available
9
BRACE RH BLKHD BLK.
5222583067
Not Available
9
BRACE LH BLKHD BLK.
5222582067
Not Available
10
BUMPER REAR Substituted by 5224334-067
5224334
Not Available
11
DECAL TRACK SEAT(BLK.) [No Longer Available]
7073038
Not Available
12
FOOTREST ASM LH
2200250
Not Available
12
FOOTREST ASM RH
2200254
Not Available
13
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
14
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
15
CAP BUMPER Substituted by 5430930-070 (TRAIL)
5430930
Not Available
16
DECAL (24##)R.BUMP#500/SKS# [No Longer Available]
7073236
Not Available
17
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
18
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
19
BRKT R.FUEL TANK BLK.
5222375067
$27,92 Unit Price incl. VAT
20
BULKHEAD (500) BLK.
1011743067
Not Available
21
DECAL TOP HOOD LH [No Longer Available] (SPORT)
7072478
Not Available
22
SNAP-MALE(10)
7080227
Not Available
23
RIVET(50)
7621301
Not Available
24
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
25
BRACKET GAS TANK BLACK
1011733067
Not Available
26
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
27
PLATE TUNNEL RH
5220635
Not Available
27
PLATE TUNNEL LH
5220634
Not Available
28
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
29
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
30
BRKT FR.SUSP BLK.
5220542067
Not Available
31
BRACKET SUSPENSION REAR LH BLACK
1011749067
Not Available
31
BRACKET SUSPENSION REAR RH BLACK
1011750067
Not Available
32
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
33
BRACE TUNNEL REINF.
5222412
Not Available
34
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
35
SUPPORT MUFFLER BLK. Substituted by 5242798-067
1011831067
Not Available
36
BOLT
7512103
$6,29 Unit Price incl. VAT
37
EXTRUSION CLUTCH GUARD
5521238
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
