1
Engine displacement
500
2
Year
1992
3
Trim
500 - 0920764
4
Parts Catalog
FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4921252125021A)
5
Parts Diagram
Parts Catalog
HOOD
by
MASTER CYLINDER 500 AND 500 CLASSIC (4921252125023A)

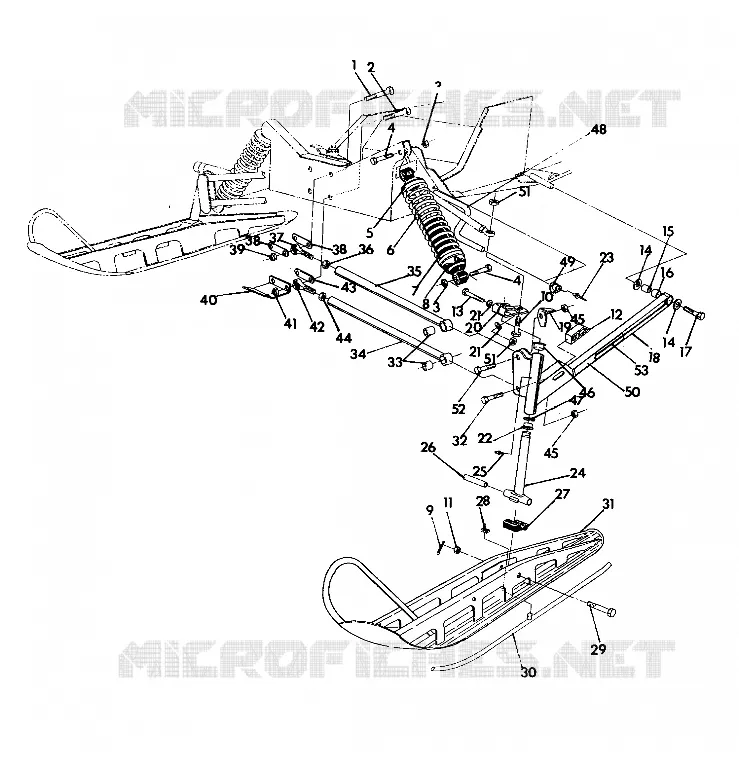

FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4921252125021A)
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
18
18
19
19
19
19
20
21
21
22
23
24
25
26
27
28
29
30
30
30
30
30
30
30
30
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
51
53
53
53
53
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
18
18
19
19
19
19
20
21
21
22
23
24
25
26
27
28
29
30
30
30
30
30
30
30
30
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
51
53
53
53
53
1
SCREW(10)
7512522
Not Available
2
BOLT(10)
7512656
$11,01 Unit Price incl. VAT
3
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
$2,09 Unit Price incl. VAT
5
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
6
SPRING COMPRESSION BLACK
7041261067
$246,74 Unit Price incl. VAT
7
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FR.SUSP. (400 600)
7041144
Not Available
9
PIN-3/32X3/4-COTTER-Y
7661205
$1,56 Unit Price incl. VAT
10
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
11
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
12
SLIDE-SWAYBAR
5410384
Not Available
13
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
Not Available
16
PIVOT-TRAILING ARM
5410382
Not Available
17
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
18
ARM TRLG LH BLK. Substituted by 1822427
1822053067
Not Available
18
ARM TRLG RH BLK. Substituted by 1822428
1822052067
Not Available
19
STOP STRNG RH BLK.
5220238067
Not Available
19
STOP STRNG LH BLK.
5220237067
Not Available
20
ARM STEERING
5220326067
Not Available
21
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
22
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
23
RIVET
7621433
$2,09 Unit Price incl. VAT
24
SPINDLE BLK. Substituted by 5130919-067
6230055067
Not Available
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
27
STOP-RUBBER
5521094
Not Available
28
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
29
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
30
MUDSKIRT KIT (ATV) Substituted by 2871106 (Classic) (Pair)
2870996
Not Available
30
SKAG CARBIDE#EZ STEER# (Classic) (Pair)
2870997
$125,99 Unit Price incl. VAT
30
SKAG PR. CARBIDE
2870693
$99,74 Unit Price incl. VAT
31
SKI WELD BLK
1820332067
Not Available
32
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
33
BUSHING
5010127
$12,59 Unit Price incl. VAT
34
ROD RADIUS BLACK
1822045067
Not Available
35
ROD RADIUS BLACK
1822037067
Not Available
36
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
37
ROD END RH
7060126
Not Available
38
STRAP-SPACER
5220178
$2,19 Unit Price incl. VAT
39
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
40
BRACE PAN
5223997067
Not Available
41
NUT FLEX (10)
7542703
Not Available
42
ROD END
7060127
Not Available
43
STRAP-SPACER BOTTOM
5220227
Not Available
44
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
45
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
46
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
47
BUSHING
7556509
$3,14 Unit Price incl. VAT
48
BAR SWAY BLACK
5224237067
Not Available
49
BUSHING-SWAYBAR
5410383
Not Available
50
DECAL IFS [No Longer Available]
7073182
Not Available
51
Nut
7542403
Not Available
53
DECAL RH IFS BLUE [No Longer Available]
7072953
Not Available
53
DECAL LH IFS BLUE [No Longer Available]
7072952
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
