AIR BOX FOR SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY FROM 2007

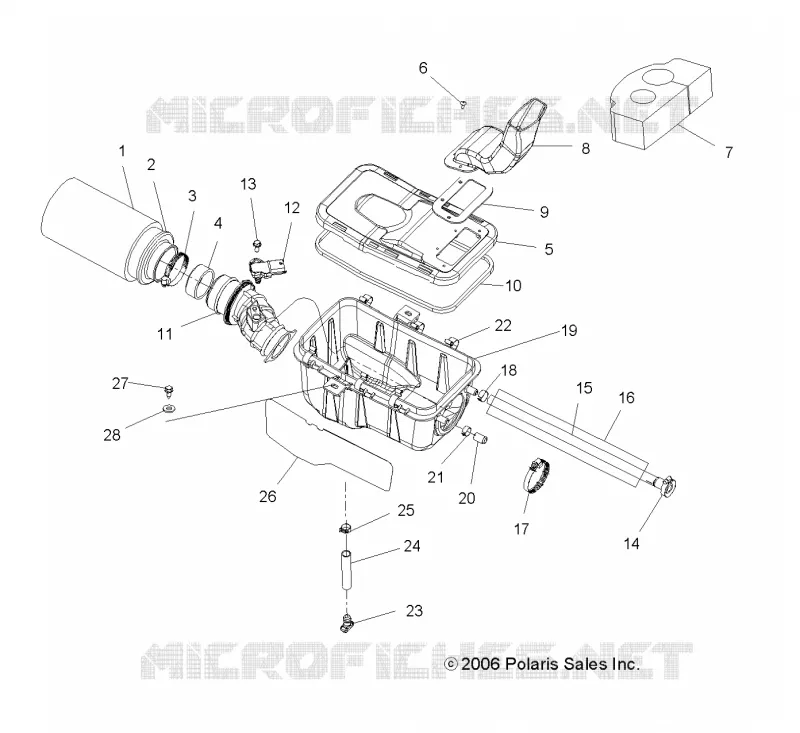

AIR BOX

1

Filter Pre-Cleaner Sleeve

5811633

$19,20 Unit Price incl. VAT

2

FILTER AIR INTAKE

7080595

$51,23 Unit Price incl. VAT

3

CLAMP BAND NARROW

7080413

$5,76 Unit Price incl. VAT

4

SLEEVE CARBURETOR INNER

5433847

$27,29 Unit Price incl. VAT

5

Asm. Cover/Seal [Incl. 10]

1203567

Not Available

5

Cover Air Box

5432868

$104,99 Unit Price incl. VAT

6

SCREW(10)

7517317

$6,29 Unit Price incl. VAT

7

Seal Foam Large Intake

5812773

$52,49 Unit Price incl. VAT

8

Duct Air Inlet Large

5436969

$141,74 Unit Price incl. VAT

9

GASKET INTAKE

5411422

$10,49 Unit Price incl. VAT

10

SEAL AIRBOX COVER

5811482

$52,49 Unit Price incl. VAT

10

Seal Air Box Cover

5812829

$52,49 Unit Price incl. VAT

11

Boot Throttle Body EFI (If built after 12/26/05)

5412985

$73,49 Unit Price incl. VAT

12

SENSOR T-MAP

2410422

$178,49 Unit Price incl. VAT

13

SCREW

7517658

$10,49 Unit Price incl. VAT

14

Clamp Hose Spring .75 Inch

7080694

$10,49 Unit Price incl. VAT

15

Hose Breather

5412615

$68,24 Unit Price incl. VAT

16

Sheath Reflect Sleeve

845010834

$62,99 Unit Price incl. VAT

17

CLAMP-NARROW BAND 1.38/2.38

7080511

$9,44 Unit Price incl. VAT

18

Clamp Hose Spring .69 Inch

7080699

$3,14 Unit Price incl. VAT

19

Box Air

5433678

$257,24 Unit Price incl. VAT

20

CAP END AIRBOX

5433396

$9,44 Unit Price incl. VAT

21

CLAMP HOSE

7080534

$3,14 Unit Price incl. VAT

22

CLIP-AIR BOX

5242044

$17,84 Unit Price incl. VAT

23

Plug Trap

5432377

Not Available

24

FUEL LINE

8450059150

$115,49 Unit Price incl. VAT

25

CLAMP HOSE (10)

7080650

$7,34 Unit Price incl. VAT

26

Foil [If built after 10/5/05]

5813042

$36,74 Unit Price incl. VAT

27

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$4,19 Unit Price incl. VAT

28

WASHER-FL .281X.750X.062-Y

7555859

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
