REAR SUSPENSION FOR SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY FROM 2007

FRONT SUSPENSION STRUT

TAIL LAMPS/HEADLIGHTS

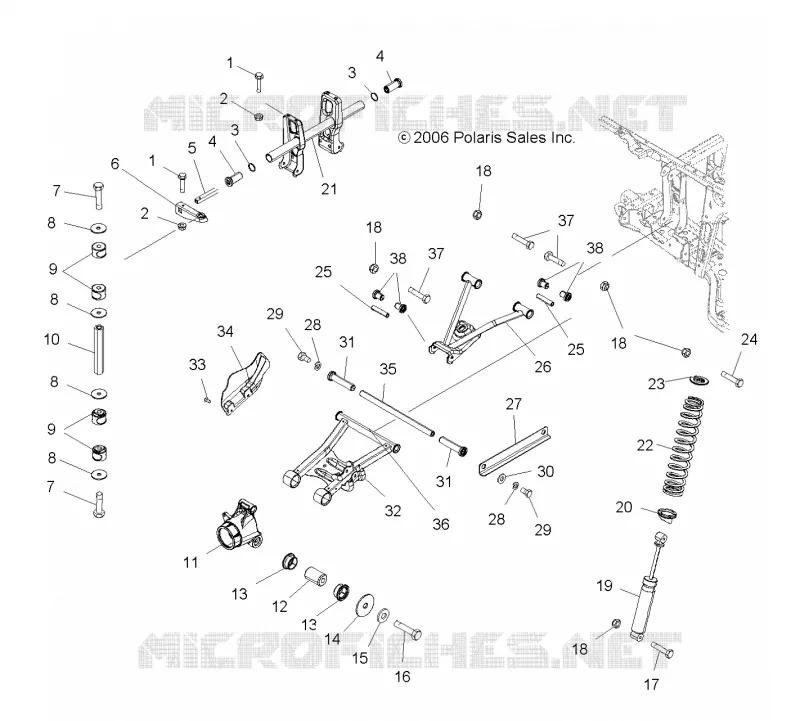

REAR SUSPENSION

1

SCREW HXFL-5/16-18X0.75 GR5 ZY3

7518341

$9,44 Unit Price incl. VAT

2

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

3

WSHR-1.28X1.69X.075-Y

7555939

$7,34 Unit Price incl. VAT

4

Bushing Stabilizer Tube (If built after 10/01/01)

5434549

$16,79 Unit Price incl. VAT

5

Bar Stabilizer Tube

5334114067

$178,49 Unit Price incl. VAT

6

ARM STAB.BAR BLK

1580107067

$99,74 Unit Price incl. VAT

7

SCREW(10)

7517231

$13,64 Unit Price incl. VAT

8

Washer Flat

7555761

$4,19 Unit Price incl. VAT

9

Bushing

5436576

$12,59 Unit Price incl. VAT

10

ROD LINKAGE STABILIZER

5020827

$99,74 Unit Price incl. VAT

11

CARRIER-BEARING WHEEL (MACH)

5135563

$121,79 Unit Price incl. VAT

12

Bushing

5631142

$41,99 Unit Price incl. VAT

13

Bushing Control Lower

5434550

$8,39 Unit Price incl. VAT

14

WASHER FLAT

7555740

$3,14 Unit Price incl. VAT

15

WASHER LOCK

7552614

$3,14 Unit Price incl. VAT

16

Screw

7517873

$4,19 Unit Price incl. VAT

17

SCREW

7515415

$2,09 Unit Price incl. VAT

18

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

19

SHOCK REAR

7043100

$167,99 Unit Price incl. VAT

20

Cam Adjusting Spring

5630551

$68,24 Unit Price incl. VAT

21

Support Stabilizer (If built after 10/01/01)

1541801067

$230,99 Unit Price incl. VAT

22

Spring Compression Rear Black [AC](If built before 9/06/04)

7043091067

$167,99 Unit Price incl. VAT

23

Retainer Spring

5631887

$19,94 Unit Price incl. VAT

24

BOLT Substituted by 7515491

7515433

$3,14 Unit Price incl. VAT

25

Shaft A-Arm. Short

5020826

$23,09 Unit Price incl. VAT

26

Arm Control Upper Black LH

1014320067

$178,49 Unit Price incl. VAT

26

Arm Control Upper Black RH

1014321067

$178,49 Unit Price incl. VAT

27

Strap Rear Skid Plate

5245140067

Not Available

28

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

29

SCREW

7512492

$2,09 Unit Price incl. VAT

30

Washer .105

7555832

$4,19 Unit Price incl. VAT

31

Bushing A-Arm Long

5434551

$9,44 Unit Price incl. VAT

32

Arm Control Lower Black LH

1015117067

$225,74 Unit Price incl. VAT

32

Arm Control Lower Black RH

1015118067

$225,74 Unit Price incl. VAT

33

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

34

SHIELD CV REAR RH MATTE BLACK

5435009070

$47,24 Unit Price incl. VAT

34

SHIELD CV REAR LH MATTE BLACK

5435008070

$47,24 Unit Price incl. VAT

35

Shaft A-Arm

5133806

$52,49 Unit Price incl. VAT

36

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

37

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$4,19 Unit Price incl. VAT

38

Bushing A-Arm Short

5434548

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
