ENGINE, RECOIL STARTER FOR 650 PATRIOT SWITCHBACK ASSAULT 146 FROM 2024

ENGINE, REED VALVE AND THROTTLE BODY ADAPTOR

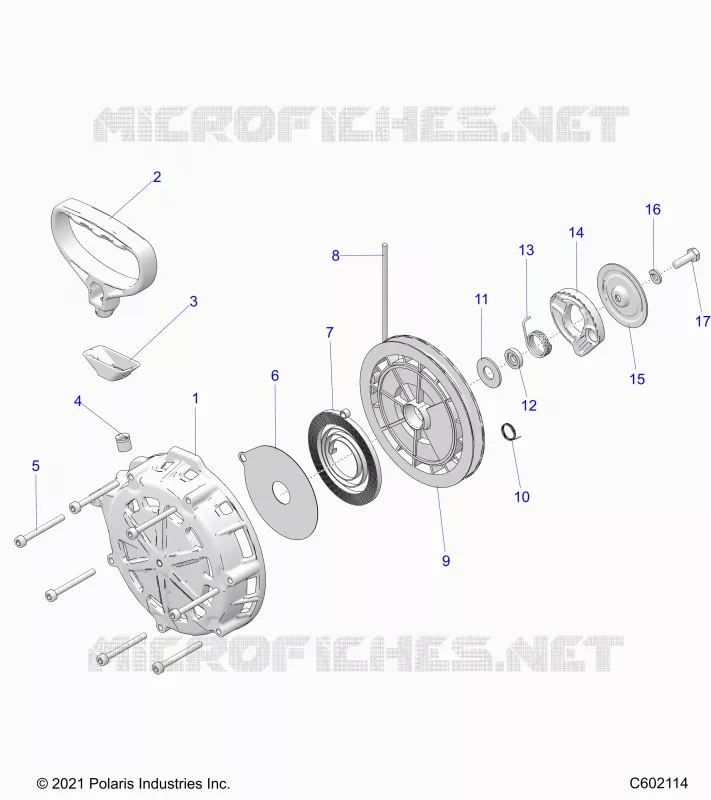

ENGINE, RECOIL STARTER

1

ASM-RECOIL AR [INCL. HOUSING 4 6 7 9-17]

1208931

$398,99 Unit Price incl. VAT

2

HANDLE RECOIL BLACK

5435154070

$16,79 Unit Price incl. VAT

3

ISOLATOR RECOIL HANDLE

5414288

$9,44 Unit Price incl. VAT

4

BUSHING ROPE SLIDE

3083107

$6,08 Unit Price incl. VAT

5

SCR-SOCFL-M6X1.0X60

7520586

$6,29 Unit Price incl. VAT

6

PLATE-SLIDE

3023597

$26,24 Unit Price incl. VAT

7

SPRING-SPIRAL RECOIL

3023299

$99,74 Unit Price incl. VAT

8

ROPE-STARTER ARAMID

3041994

$68,24 Unit Price incl. VAT

9

REEL-RECOIL

3023303

$141,74 Unit Price incl. VAT

10

SPRING-RETURN RECOIL

3023304

$6,29 Unit Price incl. VAT

11

WASHER-RECOIL

7557025

$6,29 Unit Price incl. VAT

12

SPACER-RECOIL

3023302

$26,24 Unit Price incl. VAT

13

SPRING-FRICTION RECOIL

3023300

$10,49 Unit Price incl. VAT

14

RATCHET-RECOIL

5453993

$12,59 Unit Price incl. VAT

15

PLATE-FRICTION

3021650

$52,49 Unit Price incl. VAT

16

WASHER

7557158

$7,34 Unit Price incl. VAT

17

SCREW-RECOIL

7527929

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
