FUEL SYSTEM, FUEL TANK ASM. FOR 650 PATRIOT SWITCHBACK ASSAULT 146 FROM 2024

FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY

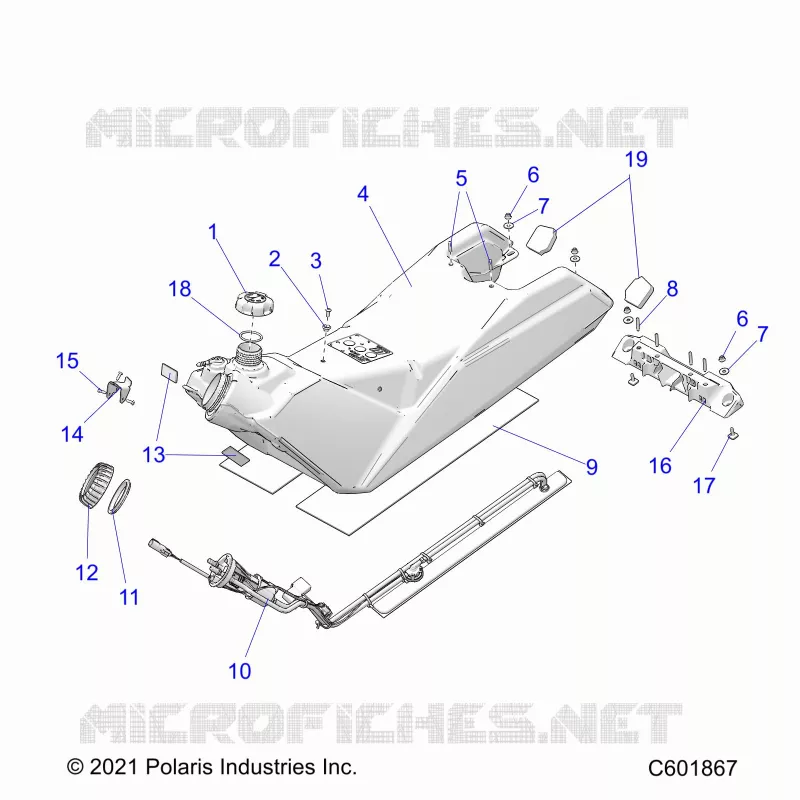

FUEL SYSTEM, FUEL TANK ASM.

1

CAP GAS TANK

5450389

$36,74 Unit Price incl. VAT

2

MOUNT SEAT FRONT

5451185

$8,39 Unit Price incl. VAT

3

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$7,34 Unit Price incl. VAT

4

ASM-FUEL TANK MACH

2522558

$834,74 Unit Price incl. VAT

5

STUD-M6X1.0X25 8.8 ZOD

7520428

$19,94 Unit Price incl. VAT

6

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

7

WASHER-.28 X .81 X .06 ST-M

7555935

$4,19 Unit Price incl. VAT

8

STUD-M6X1.0X32 8.8 ZF

7527828

$13,64 Unit Price incl. VAT

9

PAD-GAS TANK

5815007

$47,24 Unit Price incl. VAT

10

K-FUEL PUMP 650 TP/CO [INCL. PUMP GASKET PICK UP AND INSTRUCTIONS]

2209836

$1 545,90 Unit Price incl. VAT

10

K-FUEL FILTER/GASKET

2209832

$67,19 Unit Price incl. VAT

11

GASKET PFA

5415105

$94,49 Unit Price incl. VAT

12

NUT PFA

5436628

$51,23 Unit Price incl. VAT

13

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$52,49 Unit Price incl. VAT

14

BRKT-FUEL TANK

5269306

$20,99 Unit Price incl. VAT

15

RIVET-3/16-.090-.290

7661637

$2,09 Unit Price incl. VAT

16

ASM-FUEL TANK SUPPORT INCLUDES STUDS

1026480

$157,49 Unit Price incl. VAT

17

SCREW-SPL M6X1.0X20 8.8 ZOD

7520464

$7,34 Unit Price incl. VAT

18

O-RING

5411174

$3,14 Unit Price incl. VAT

19

FOAM-TANK MOUNT

5815196

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
