1
Engine displacement
0
2
Year
1992
3
Trim
BIG BOSS 6X6 - W928727
4
Parts Catalog

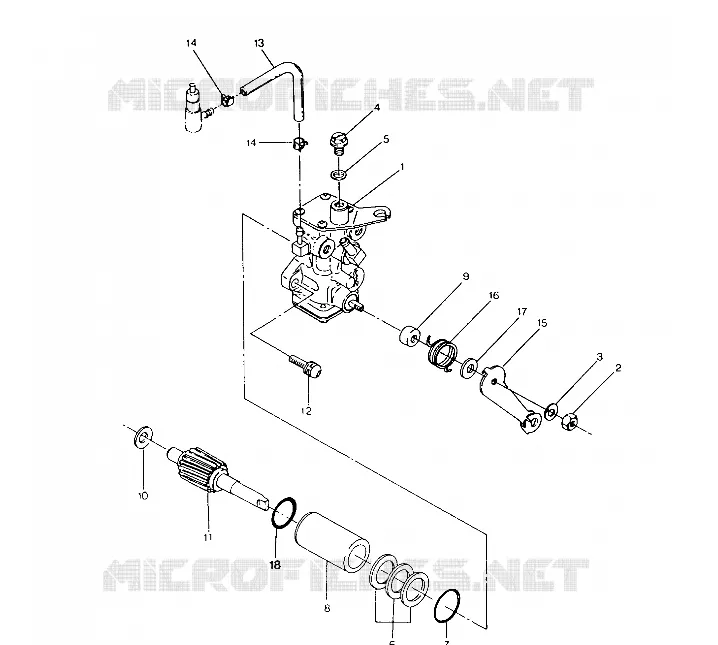

OIL PUMP ASSEMBLY 250 6X6 / W928727 (4922842284045A)
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON ASSEMBLY 250 6X6 / W928727 (4922842284044A)
by
FRONT CAB ASSEMBLY 250 6X6 / W928727 (4922842284001A)
OIL PUMP ASSEMBLY 250 6X6 / W928727 (4922842284045A)
1
2
3
4
5
6
6
7
7
8
9
10
11
11
11
11
11
11
11
11
11
12
13
14
15
1
1
2
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
15
15
16
16
17
17
18
18
1
1
2
2
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
15
15
16
16
17
17
18
18
1
CLUTCH DRIVE Substituted by 1321633 (Less 5 14)
1321605
1321976
$1 081,49 Unit Price incl. VAT
1
OIL PUMP ASM. Substituted by 3085542 (F1B) (Incl. 4 5 7 13-18)
3083806
Not Available
2
NUT
3083120
$6,29 Unit Price incl. VAT
2
BOLT(10) Substituted by 7512163
7512176
7512163
$7,34 Unit Price incl. VAT
3
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
3
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
4
SCREW-AIR VENT
3083125
Not Available
5
SPRING CLUTCH
7041157
$89,24 Unit Price incl. VAT
5
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
6
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
6
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
6
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
6
BUTTON GUIDE(10)
5430768
$19,94 Unit Price incl. VAT
7
O RING
3083127
Not Available
7
O RING(10)
5410610
$10,49 Unit Price incl. VAT
8
PIN SPIDER (.950)
5020678
Not Available
8
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
9
CAP
3083758
$9,23 Unit Price incl. VAT
9
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
10
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
10
SPACER *
3083428
$3,14 Unit Price incl. VAT
11
GEAR SMALL
3083429
Not Available
11
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
11
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
11
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
12
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
12
SCREW & WASHER Substituted by 3083783
3084198
$4,19 Unit Price incl. VAT
13
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
13
PIPE RUBBER Substituted by 3083446
3083139
Not Available
14
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
14
WT SHIFT #S#(6) (16)
5630095
Not Available
15
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
15
LEVER CONTROL
3083935
Not Available
16
SPRING-RETURN
3083123
Not Available
17
COLLAR CAMSHAFT
3083757
$7,86 Unit Price incl. VAT
18
O RING
3083129
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
