Parts Catalog

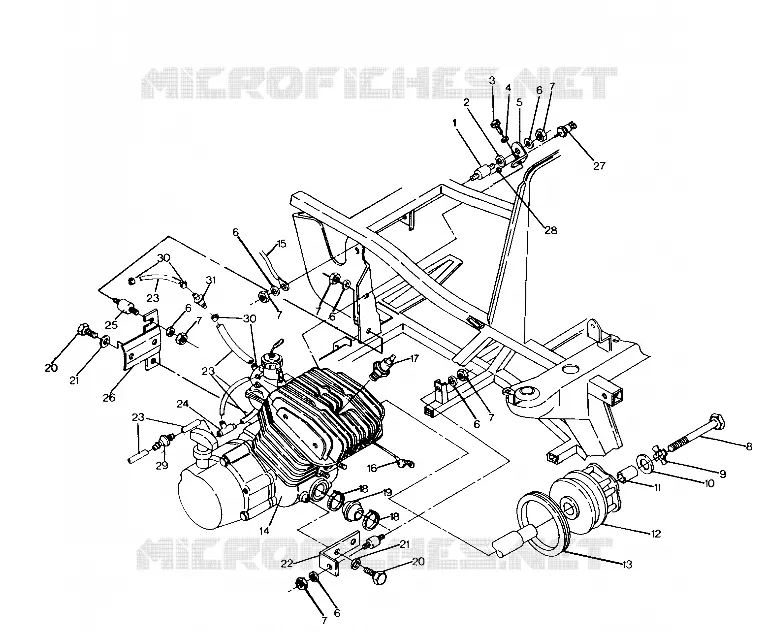

ENGINE MOUNTING 250 6X6 / W928727 (4922842284006A)
5
Parts Diagram
Parts Catalog
OIL TANK ASSEMBLY 250 6X6 / W928727 (4922842284005A)
by
FAN ASSEMBLY 250 6X6 / W928727 (4922842284007A)
ENGINE MOUNTING 250 6X6 / W928727 (4922842284006A)
1
MOUNT MOTOR
3110026
$73,49 Unit Price incl. VAT
2
INSULATOR MOTOR MT.
5430802
$52,49 Unit Price incl. VAT
3
BOLT(10)
7515321
Not Available
4
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
5
MOUNT ENG. TOP
5220471067
Not Available
6
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
7
Nut
7542403
Not Available
8
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
9
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
10
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
11
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
12
CLUTCH DRIVE Substituted by 1321497
1321519
1321976
$1 081,49 Unit Price incl. VAT
13
SEAL ENG./CLUTCH
5410411
Not Available
14
ENG.EC25PF-05(ATV) [No Longer Available]
1211460
Not Available
14
DESC NOT_AVAILABLE
1211475
Not Available
15
CABLE GROUND/ENG.
4010067
Not Available
16
INSULATOR-CABLE
5410346
$12,59 Unit Price incl. VAT
17
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
18
CLAMP
7080136
Not Available
19
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
20
SCREW
7512490
$7,34 Unit Price incl. VAT
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
22
PLATE FR.MTR.MT.
5220881067
Not Available
23
LINE VENT (38.0##) Substituted by 8360009-600
5521087
8360009-600
$83,99 Unit Price incl. VAT
24
FITTING TEE
7052005
Not Available
25
MOUNT MOTOR
3110028
Not Available
26
MOUNT REAR Substituted by 5241056-067
5220757067
Not Available
27
THERMOSTAT COOL.FAN Substituted by 4010211
4110114
Not Available
28
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
29
CHECKVALVE VENT Substituted by 7051011
7052047
Not Available
30
CLAMP
7080236
$3,14 Unit Price incl. VAT
31
FILTER
2530009
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
