Parts Diagram

EXHAUST SYSTEM LITE 0943433 AND LITE DELUXE 0943431 (4924992499027A)

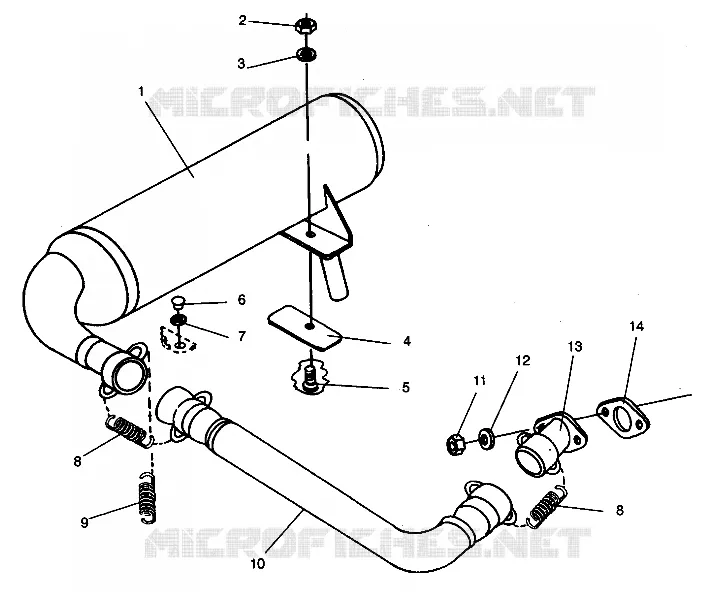

EXHAUST SYSTEM STARLITE 0943427 (4924992499028A) FOR LITE - 0943433 FROM 1994

CYLINDER LITE 0943433 AND LITE DELUXE 0943431 (4924992499033A)

Part numbers

MUFFLER

1260559029

$225,74 Unit Price incl. VAT

NUT FLEXLOC

7542103

$10,49 Unit Price incl. VAT

WASHER-.312 X .734 X .065-Z

7558302

$3,14 Unit Price incl. VAT

PAD

5810249

Not Available

BOLT(10)

7512240

$7,34 Unit Price incl. VAT

DAMPNER VIB.

5410467

$16,79 Unit Price incl. VAT

WASHER FLAT

7555726

$3,14 Unit Price incl. VAT

SPRING EXHAUST(10)

7042031

7041687

$12,59 Unit Price incl. VAT

SPRING-EXHAUST

7042029

$10,49 Unit Price incl. VAT

HEADPIPE WELD BLK.

1260558029

Not Available

NUT(10)

7542323

$3,66 Unit Price incl. VAT

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

MANIFOLD WELD.

1260566029

$30,54 Unit Price incl. VAT

GASKET EXHAUST

5830001

$3,98 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
