ENGINE MOUNTING STARLITE 0943427 (4924992499026A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING LITE 0943433 AND LITE DELUXE 0943431 (4924992499025A)
by
EXHAUST SYSTEM LITE 0943433 AND LITE DELUXE 0943431 (4924992499027A)

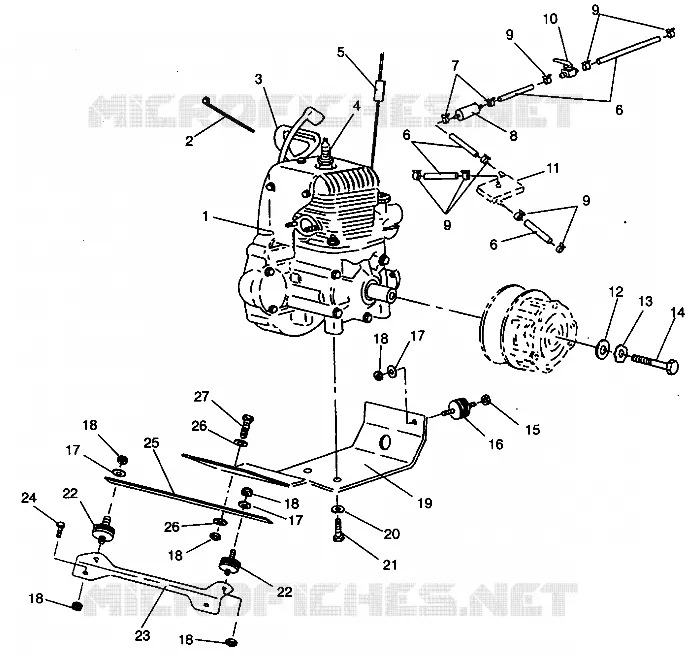

ENGINE MOUNTING STARLITE 0943427 (4924992499026A)
1
1
2
3
4
5
6
6
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
17
17
18
18
18
18
18
18
19
20
21
22
22
23
24
25
26
26
27
1
1
2
3
4
5
6
6
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
17
17
18
18
18
18
18
18
19
20
21
22
22
23
24
25
26
26
27
1
1
2
3
4
5
6
6
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
17
17
18
18
18
18
18
18
19
20
21
22
22
23
24
25
26
26
27
1
ENG.(S.B.)EC25PS-07 [No Longer Available]
3084619
Not Available
1
ENG.EC34-2PM02 [No Longer Available]
1211559
Not Available
2
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
3
HANDLE-RECOIL
5430520
Not Available
4
SPARKPLUG (10)
3070156
$7,34 Unit Price incl. VAT
5
CABLE THROTTLE Substituted by 7080556
7080410
Not Available
6
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
7
CLAMP HOSE
7080490
Not Available
8
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
9
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
10
VALVE FUEL SHUT-OFF
7052039
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
13
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
14
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
15
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
16
MOUNT-MTR.
3110020
Not Available
17
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
18
Nut
7542403
Not Available
19
PLATE ENG.MT BLK.
5222539067
Not Available
20
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
21
BOLT
7512539
$7,34 Unit Price incl. VAT
22
MOUNT MOTOR
3110028
Not Available
23
CHANNEL ENG.MT.
5222540067
Not Available
24
BOLT(10) [CALIPER MOUNTING]
7512457
$7,34 Unit Price incl. VAT
25
STRAP ENG.MT BLK.
5211266067
Not Available
26
WASHER-LOCK(10)
7571611
$6,29 Unit Price incl. VAT
27
BOLT. 3/8”X1-1/4” [2011-2015]
7512405
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
