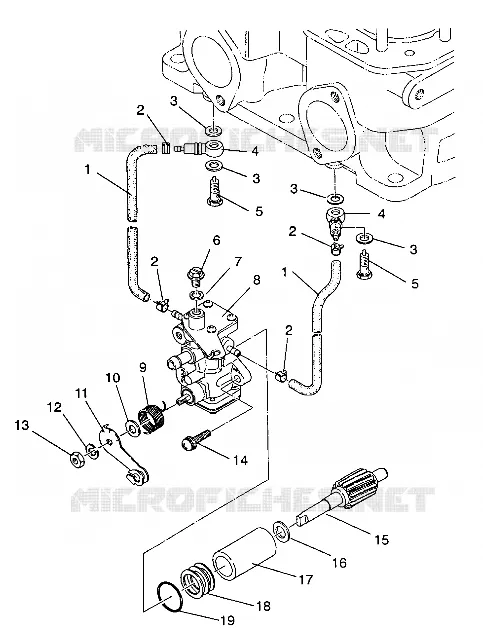

OIL PUMP ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293034A) FOR EURO 440 - E930760 FROM 1993

OIL PUMP ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293034A)

1

PIPE RUBBER(L=145)

3083534

Not Available

2

CLAMP HOSE

3083141

$2,09 Unit Price incl. VAT

3

WASHER(10) Substituted by 7555998

3083138

$2,09 Unit Price incl. VAT

4

VALVE CHECK

3083894

Not Available

5

BOLT-BANJO

3083137

Not Available

6

SCREW-AIR VENT

3083125

Not Available

7

PACKING(10)

3083126

$7,34 Unit Price incl. VAT

8

PUMP OIL (Incl. 2-9)

3084013

Not Available

9

SPRING-RETURN

3083123

Not Available

10

COLLAR CAM SHAFT

3083445

$4,19 Unit Price incl. VAT

11

LEVER CONTROL

3084014

Not Available

12

WASHER SPRING

3083121

$614,24 Unit Price incl. VAT

13

NUT

3083120

$6,29 Unit Price incl. VAT

14

SCREW&WASHER (10)

3083783

$4,19 Unit Price incl. VAT

15

GEAR SMALL OIL PUMP

3083131

$141,74 Unit Price incl. VAT

16

SPACER

3083130

$3,14 Unit Price incl. VAT

17

BUSHING(OIL PUMP)

3083353

$54,59 Unit Price incl. VAT

18

SPACER 3 .6MM

3083673

$8,39 Unit Price incl. VAT

18

SPACER 2 .3MM

3083672

$6,29 Unit Price incl. VAT

18

SPACER 1 .15MM

3083671

$6,29 Unit Price incl. VAT

19

O RING

3083127

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
