1
Engine displacement
440
2
Year
1993
3
Trim
EURO 440 - E930760
4
Parts Catalog
CYLINDER 440 / 0930760 AND 440 SKS / 0930560 (4922932293029A)
5
Parts Diagram
Parts Catalog
CRANKCASE ASSEMBLY 440 / 0930760 AND 440 SKS / 0930560 (4922932293028A)
by
WATER PUMP 440 / 0930760 AND 440 SKS / 0930560 (4922932293030A)

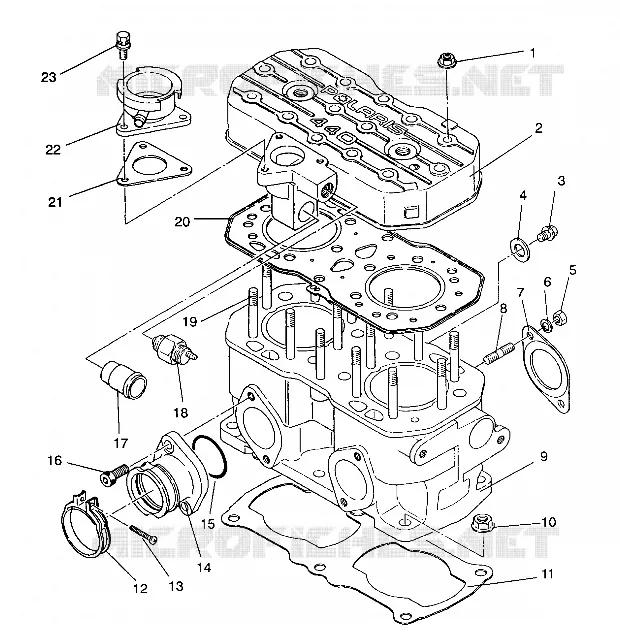

CYLINDER 440 / 0930760 AND 440 SKS / 0930560 (4922932293029A)
1
NUT-FLANGE(10)
3082910
Not Available
2
HEAD CYLINDER (Incl. 8)
3084323
Not Available
3
PLUG Substituted by 3084491
3083044
Not Available
4
GASKET-ALUM Substituted by 3084492
3082719
$7,34 Unit Price incl. VAT
5
NUT(10)
3080285
Not Available
6
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
7
GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Not Available
8
STUD Substituted by 3085326
3084270
Not Available
9
CYLINDER (Incl. 2-3)
3084322
$904,04 Unit Price incl. VAT
10
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
11
GASKET BASE Substituted by 3084768
3083959
$94,49 Unit Price incl. VAT
12
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
13
SCREW Substituted by 3081497
3083086
$4,19 Unit Price incl. VAT
14
MOUNT CARBURETOR Substituted by 3085044
3083306
Not Available
15
O-RING Substituted by 3085619
3084272
5418045
$36,74 Unit Price incl. VAT
16
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
17
PIPE WATER (Water)
3083452
Not Available
18
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
19
STUD
3083360
Not Available
20
GASKET HEAD
3084324
Not Available
21
GASKET FILLER NECK
3083340
Not Available
22
NECK FILLER
3083398
Not Available
23
BOLT&WASHER ASM.
3083361
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
