COOLING SYSTEM (BUILT 4/07 AND AFTER) for POLARIS SPORTSMAN 800 HO EFI - A09MN76AX/AZ from 2009

DRIVE TRAIN, FRONT GEARCASE AND MOUNTING

COOLING SYSTEM (BUILT 4/06 AND BEFORE)

COOLING SYSTEM (BUILT 4/07 AND AFTER)

1

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$4,19 Unit Price incl. VAT

2

CLIP-#U# M6.0X1.0

7547366

$9,44 Unit Price incl. VAT

3

Kit Fan [Built 1/02/09 and After] [Incl. Circuit Breaker]

2204192

$342,29 Unit Price incl. VAT

4

Screw

7547220

Not Available

5

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

6

LINE FUEL

8450120600

$136,49 Unit Price incl. VAT

7

CLAMP BROWN OR SILVER 32/12

7080843

$7,34 Unit Price incl. VAT

8

Filler Remote

5438110

Not Available

9

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

10

CAP PRESSURE

1240508

$89,24 Unit Price incl. VAT

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$14,69 Unit Price incl. VAT

12

CONDUIT FLEX

552179417

$16,79 Unit Price incl. VAT

13

Hose Engine Upper

5413672

$83,99 Unit Price incl. VAT

14

TRIM EDGE

5521131

$83,99 Unit Price incl. VAT

15

CAP OVER FLOW BOTTLE W/FITTING

5437635

$9,44 Unit Price incl. VAT

16

GASKET-OVERFLOW CAP

5810279

$4,19 Unit Price incl. VAT

17

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$83,99 Unit Price incl. VAT

18

TANK-SURGE

5436936

$152,24 Unit Price incl. VAT

19

FITTING-1/8-27 BARBED 90 DEG

7052065

$13,64 Unit Price incl. VAT

20

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

21

CONDUIT FLEX

552128708

Not Available

22

Bracket Radiator Mount Upper

5246656

Not Available

23

Hose

5413671

$62,99 Unit Price incl. VAT

24

CONDUIT FLEX

552179417

$16,79 Unit Price incl. VAT

25

CONNECTOR-TEE 1# 1# 1# BARBED

7052373

$19,94 Unit Price incl. VAT

26

Hose Lower Radiator

5413673

Not Available

27

ASM. GROMMET AND INSERT

5413155

$7,34 Unit Price incl. VAT

28

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$4,19 Unit Price incl. VAT

29

Asm. Radiator [Incl. 27]

1240521

$850,49 Unit Price incl. VAT

30

Bracket Radiator Lower

5245773067

$220,49 Unit Price incl. VAT

31

SCR-1/4-20X5/8 TAP/R-Y

7517386

$2,09 Unit Price incl. VAT

32

BUSHING-MOUNT LOWER RADIATOR

5410584

$10,49 Unit Price incl. VAT

33

Valve Plastic Radiator/Cooler Drain

7052296

Not Available

34

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

35

Hose Engine Lower

5413674

$104,99 Unit Price incl. VAT

36

CABLE-TIE 25-76MM WEATH.-RES.

7080492

$5,24 Unit Price incl. VAT

37

Retainer Hose

7042089

$12,38 Unit Price incl. VAT

38

SHROUD FAN

5437845

$99,74 Unit Price incl. VAT

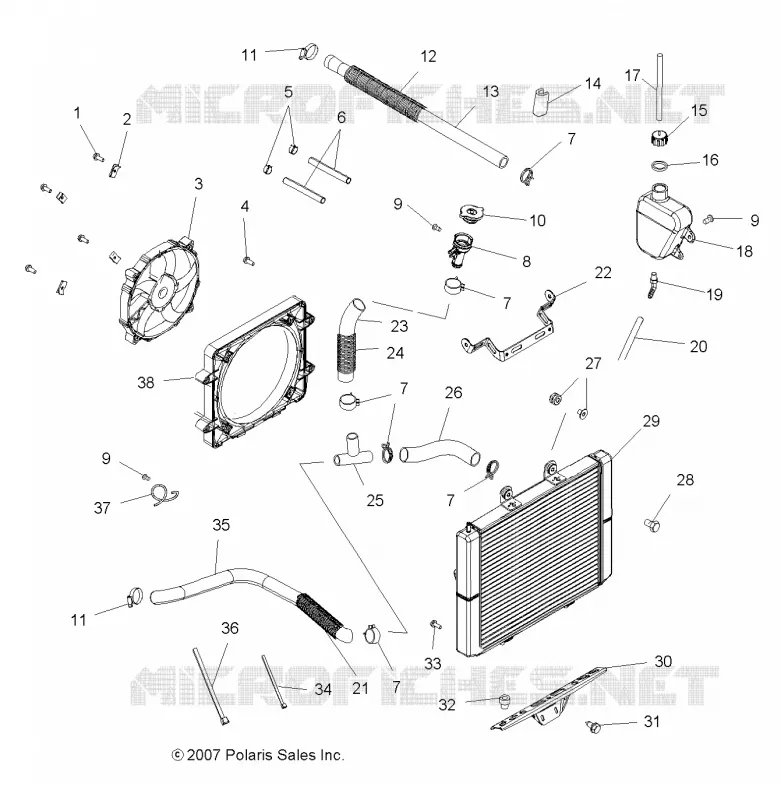

Find the detailed COOLING SYSTEM (BUILT 4/07 AND AFTER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
