DRIVE TRAIN, MAIN GEARCASE MOUNTING FOR SPORTSMAN 800 HO EFI - A09MN76AX/AZ FROM 2009

DRIVE TRAIN, MAIN GEARCASE INTERNAL

DRIVE TRAIN, REAR GEARCASE MOUNTING

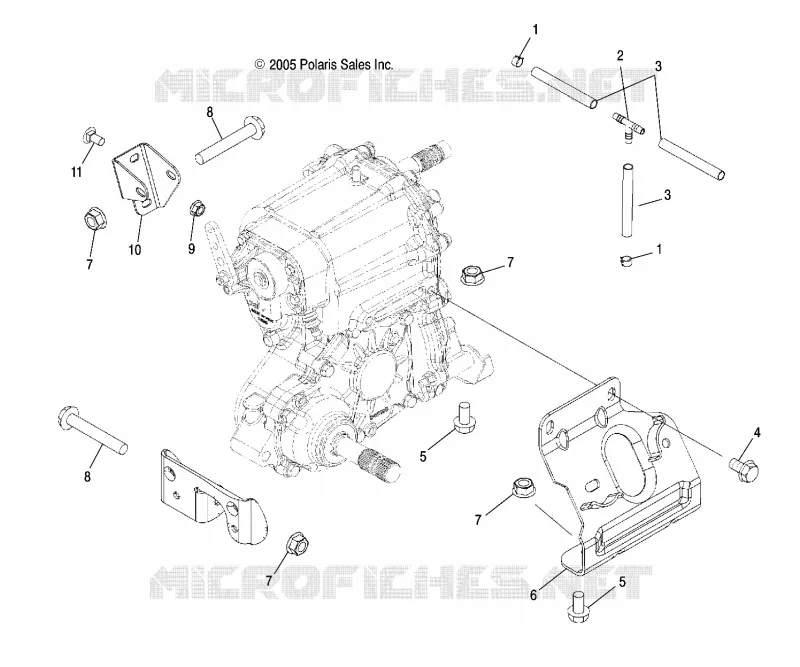

DRIVE TRAIN, MAIN GEARCASE MOUNTING

1

CLAMP-HOSE (LARGE GREEN)

7080307

$1,56 Unit Price incl. VAT

2

FITTING-TEE 1/4-1/4-BRB-NY

7052075

$17,84 Unit Price incl. VAT

3

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

4

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$10,49 Unit Price incl. VAT

5

SCREW (10)

7517289

$9,44 Unit Price incl. VAT

6

Mount Engine Rear

1013134067

Not Available

7

Nut Flanged Lock

7547263

$6,29 Unit Price incl. VAT

8

Screw

7518415

$9,44 Unit Price incl. VAT

9

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

10

Bracket Mount Rear

5247348

Not Available

11

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
